Used Galvanized Steel Coil Door Frame Cold Roll Forming Machine Prices Shutter Door Roll Forming Machine for Sale

Used Galvanized Steel Coil Door Frame Cold Roll Forming Machine Prices Shutter Door Roll Forming Machine for Sale

US$60,000.00-70,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YX66-120/66-300
Certification
CE, ISO9001
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Drive
Electromagnetic
Type
Door Frame Rolling Machine
Thickness
1.2-2.0mm
Forming Speed
0-15m/Min
Main Power
11kw
Hydraulic Power
5.5kw
Drive System
by Chain
Roll Station
21stations
Punching Station
4stations
Mould Material
Cr12, HRC58-62
Voltage
380V/3pH/50Hz
Transport Package
Sea Packing
Specification
CE SGS
Trademark
SAIBO
Origin
Jiangsu, China
HS Code
84552210
Production Capacity
300 Units/Year

Product Description

Product Description
1. Machine profile drawing
2.Machine Layout for reference
Decoiler - feeding- flatten- punching - cutting- roll forming-out table
Product Parameters
3. Main Spec.
Item NO
Description

Offered specification
Roll Forming Machine
Double door frame
Material width
3 sizes. Waiting for buyer exactly profile

How to adjust size
Option : by PLC (It can be adjust by PLC and also in hand wheel)
One side fixed and the other is adjustable by manual or PLC

Base frame
base frame 30 mm thick steel plate process the surface on CNC planer to keep it leveling and drill boltes and key slot by CNC
Rolling Speed
12-15m/min(not include cutting time)
Rolling Thickness
1.2-2.0mm
Material
GI or metal
Control System
PLC (Panasonic) as list in the note
Un Coiler
3 ton manual decoiler
Leveling
Up in 3 roller, down in 4 roller
Roller Stations
About 21 stations
Roller Material
Gcr15, coated with chrome HRC58-62 degree
Shaft Material and DIA
¢70mm, material is 45# forge steel
Maim Motor Power
11kw brake motor
Hydraulic Station Power
5.5kw
Hydraulic Pressure
20Mpa
Capacity of tonnage for punching
22Tons
Hydraulic pump brand
Yuken
Bearing brand
Harbin



Other brand list
PLC: Panasonic
Touch screen: MCGS
Inverter: Yaskawa
Encoder: Omron


Punching
3 units pre-punching and one unit cutting&punching include including 6 set 45 degree angle moulds
The punishing tonnage to make the hole and cutting to make the 45 degree
Cutting
Hydraulic post-cutting for cut end product
Extra cutter
One more cutter for each profile
Material Of Cutting
Cr12Mov quenching 58-62ºC
Electric Source
380V, 50HZ,3 phase
Way Of Drive
1.2 inch single chain
Color Of The Machine
Yellow and blue
Machine Type
Iron Cast
Emergency switch In main machine and control panel all have emergency switch for forbid any urgently accident
Protect cover
Complete mobile safty cover from roll forming to the cutter
Size of the machine L*W*H 12m*1.2m*1.2m
Container Need
1 x40 feet (base on final)

Detailed Photos

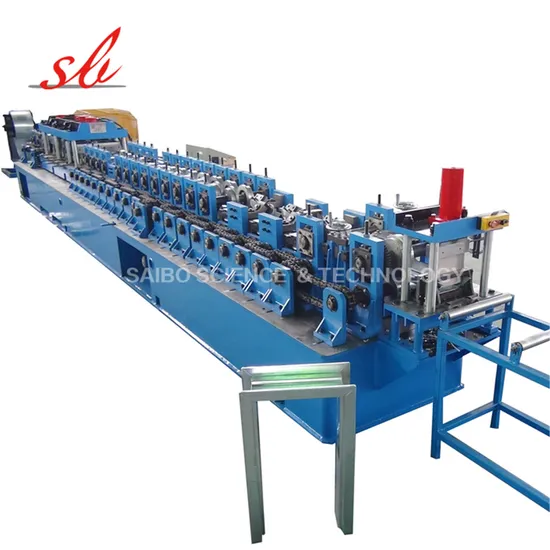

Machine photos for reference
View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html

Warranty
5. warranty
warranty: 1 year warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
After Sales Service
6.Servies
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Packaging & Shipping
7.Packing & Delivery

Packing
1.Machine is nude loaded in the container .
2.The electric controlling box is packed by protect film .
3. All the spare parts are put in the wooden box .

Delivery
1. Sea shipping .
2. Air shipping for sampling .
3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry .

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html Company Profile
About Saibo
40 years history in Metal roll forming machine industry30 years experienced engineersFocus on machine quality and automatic with reasonable priceExperienced technician can be sent to install machines abroad200+ sets of machines exported each year
24 hours on line service
Zhangjiagang City Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of different kind purlin/channel which make from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in zhangjiagang city,Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in 30 years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and regular customers . All of our technology team and marketing person all more than 10 years working.In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
View more products,click here..
https://saiborollforming.en.made-in-china.com/product-list-1.html
FAQ
FAQ
Q1 : How to find Saibo? 1. Search Made-in-China find Saibo, suppliers and manufactrue and not traders
2. Visit exhibition in different countries
3. Send Saibo an request and tell your basic inquiry
4. Saibo sales manager will reply you in short time and add instant chatting tool
Q2 : You are welcome to our factory at any time .
1. If we can fullfill your request and you interested in our products, you may pay a visit to Saibo site
2. The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q3 : How to guarantee your funds to be safe and delivery to be on time ?
1. By letter of credit, you can lock the delivery time easily.
2. After the factory visit, You can ensure the facticity of our bank account.
Q4 : See Saibo how to ensure the quality !
1. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2. Each component before assembly needs strictly control by inspecting personnel.
3. Each assembly is in charged by a master who has working experience for more than 5 years
4. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
Q5 : The after-sale service of Saibo !
1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
