ISO9001: 2000/ISO9001: 2008 CNC/Nc Hydraulic Folding Bending Machinery
| US$8,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GLB
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel, All Metal
Type
Hydraulic Bending Machine
Repeat Accuracies
+/-0.01mm
Parallelism Accuracies
+/-0.01mm
Premium Backgauge
R, Z1-Z2, X′axes
Supreme Backgauge
6 Axes X1/X2, R1/R2, Z1/Z2
Transport Package
Packed in Piaywood
Specification
metal
Trademark
GLORY STAR
Origin
China
HS Code
84561000
Production Capacity
3500 PCS/Year
Product Description

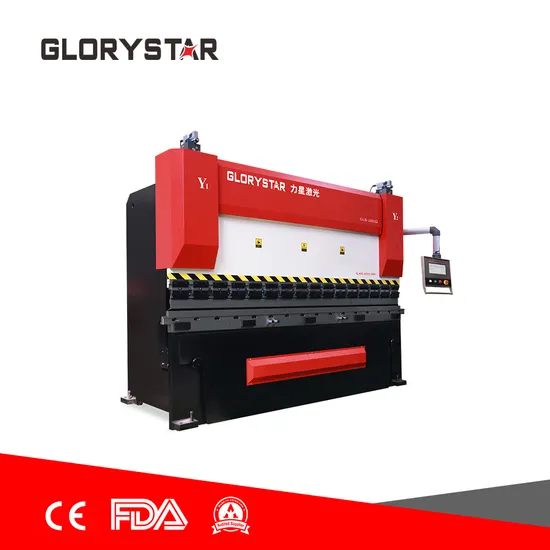

ISO9001:2000/ISO9001:2008 CNC/NC Hydraulic Folding Bending Machinery >>> Features1) Machine frame is heaviest welded con struction,stess released by annealing process,this has minimized deflection of the frame.
2) Y Axis full closed loop control
3) Proportional hydraulic compensation system to prevent deformation
4) German HEIDENHAIN linear encoder
5) Taiwan HIWIN ball screw and linear guide rail ,high performance AC Japanese Yaskawa AC servo motors and drives
6) Rich functions CYBELEC/DELEM professional control system
7) Electro-hydraulic servo synchronization module and Greman BOSCH pressure module
8) +/-0.01mm repeat accuracies
9) +/-0.01mm parallelism accuracies
>>> Optional Accessorie
1) Premium Backgauge-R,Z1-Z2,X' Axes as Options
2) Supreme Backgauge 6 axes X1/X2, R1/R2, Z1/Z2
3) Light Curtains or Laser safe
4) Laser check bend angle measuring device
5) Robotic Bending
