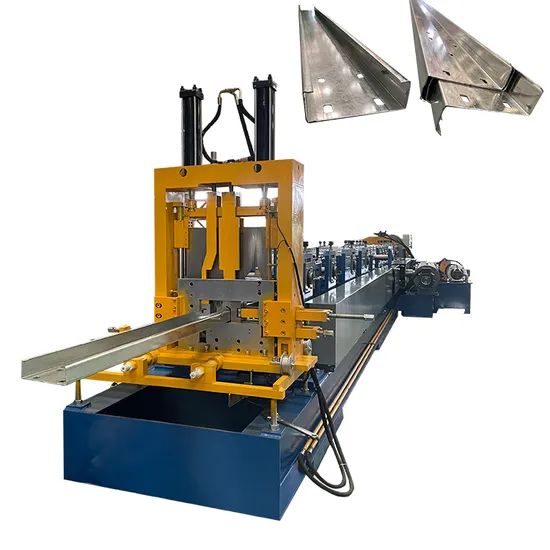

CZ Full Automatic Purlin Roll Forming Machine

Product Description

Focus on roll forming machine for more than 19 year
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Technical Advantages of Using XHH C&Z Purlin Machine:
1.Full automatically change size from 100mm to 300mm by PLC control in 1 minute
2.Easy operating for manual changing C purlin to Z purlin in half hour
3.Servo motor driving system
4.Hydraulic pre-ctter+Hydraulic post-cutter
5.Rolling thickness available from 1.2-3.0mm,working speed:0-30m/min

C Purlin
Model	Section Size
	H	B	C
C100	100	40	14
C120	120	40	16
C140	140	50	16
C160	160	50	16
C180	180	60	18
C200	200	60	18
C220	220	70	18
C250	250	70	20
C280	280	80	20
C300	300	80	20

Z Purlin
Model	Section Size
	H	B1	B2	C
Z120	120	55	50	16
Z140	140	55	50	16
Z160	160	67	61	16
Z180	180	67	61	18
Z200	200	67	61	18
Z220	220	78	72	18
Z250	250	78	72	20
Z280	280	78	72	20
Z300	300	78	72	20

Note: the above dimensions are commonly used, and the actual dimensions ((within the size range) can be set at will in actual use.
Punching Devices 1.Punching method: Pre punching, allowing punching flange hole/web hole/single and double holes;
2.Puncher material: SKD11;
3.Punching specifications: 14*25mm(available customized);
Hydraulic Cutting Devices 1.Cutting mode: pre cutting, two-piece staggered knife, cutting without waste;
2.Cutter material: SKD11;

Main Technical Data:
Size for C Purlin	100-300mm
Size for Z Purlin	120-300mm
Machine Dimension	11000*1800*1500mm
Machine Weight	1ltons
Material Thickness	1.2-3.0mm
Main Servo Motor Power	30KW
Forming Steps	18steps
Running Speed	0-30m/min
Hydraulic Power	7.5KW
Roller Material	Gcr15&Crl2,heat treatment,plate hard chrome
Cutter Material	SKD-11
Machine Frame Material	H-Beam with 30mm thickness

Main Accessories:
1.Uncoiler	1 set
2.Hydraulic puncher	2 sets
3.Hydraulic cutter (pre-cutter+post-cutter	1 set
4.Main forming machine	1 set
5.Hydraulic system	1 set
6.Servo Motor Control system	1 set

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
