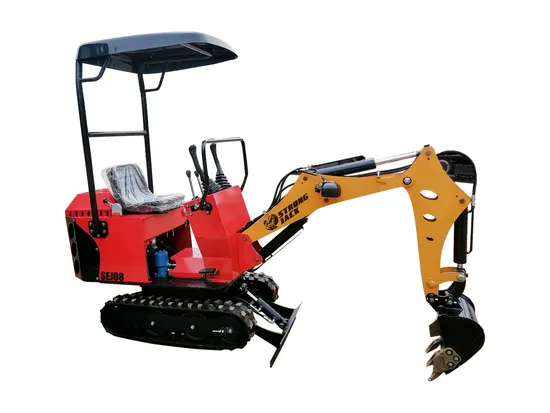

China Mini 0.8t Excavator Small Digger with Rubber Track & 7kw Engine
| US$1,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LQ08
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Diesel
Bucket Capacity
0.025cbm
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Power
7kw
Enging Model
Koop Kd192f
Operating Weight
800kg
Max.Digging Fore
7.5kn
Working Pressure
18MPa
Swing Speed
12rpm
Walking Speed
2.2km/H
Gradeability
30
Width
720mm
Awning Height
2030mm
Length
2600mm
Mini.Ground Clearance
80mm
Crawler Grounding Length
1140mm
Crawler Width
150mm
Color
as Customized
Transport Package
No Package or Wooden Box
Specification
LQ08
Trademark
LUQING
Origin
Qingzhou City, Shandong Province, China
HS Code
84295212
Production Capacity
1000
Product Description
ADVANTAGE: 1. ENGINE:KOOP 192F ENGINE,RATED POWER 7.6KW,WHICH GURANTEES SUPER POWER2. STABILITY:USING THICK HIGH-STRENGTH STEEL PLATE AND UNLTRASONIC FLAW DETECTION ECHNOLOGY FOR WHOLE STRUCTURE BODY
3. CHASSIS:BIG SUPPORTING WHEEL EFFECTIVELY AVOIDS RUBBER TRACK DERAILMENT
4. CONTROL HANDLE:SIMPLE,EASY TO DRIVE,EVEN NO OPERATING EXPERIENCE CAN OPERATE FREELY IN EXTREME TIME
5. CONVENIENCE:SMALL SIZE,CONVENIENT FOR ALL KINDS OF OPERATING SITE,EVEN VERY NARROW ROAD CAN PASS AND OPERATE FREELY
SPECIFICATIONS
| SPECIFICATIONS | |
| ENGINE POWER | 7KW |
| BUCKET CAPACITY | 0.025m3 |
| ENGING MODEL | KOOP KD192F |
| OPERATING WEIGHT | 800kg |
| MAX.DIGGING FORE | 7.5kN |
| WORKING PRESSURE | 18Mpa |
| SWING SPEED | 12rpm |
| WALKING SPEED | 2.2km/h |
| GRADEABILITY | 30° |
| WORKING RANGE | |
| MAX.DIGGING DISTANCE | 2575mm |
| MAX.DIGGING DEPTH | 1000mm |
| MAX.DIGGING HEIGHT | 2560mm |
| MAX.DUMPING HEIGHT | 1780mm |
| MIN.TURING RADIUS | 1100mm |
| DOZER BLADE LIFTING HEIGHT | 150mm |
| DOZER BLADE SUBSIDENCE DEPTH | 100mm |
| OVERALL DEMENSION | |
| WIDTH | 720mm |
| AWNING HEIGHT | 2030mm |
| LENGTH | 2600mm |
| MINI.GROUND CLEARANCE | 80mm |
| CRAWLER GROUNDING LENGTH | 1140mm |
| CRAWLER WIDTH | 150mm |
