Design Solution of High-Quality Floor Type Chicken House for Broilers/Chicks

Product Description

Design Solution of
High-Quality Floor Type Chicken House for Broilers/Chicks
Product Description
1. Automatic Main Feeding System
The feed sensor at the end of the main feed line controls the motor switch to transport the feed from the silo to the vice hopper at the beginning of each feed line. The automatic feeding system can reduce the number of times the breeder carries the feed, improve the efficiency, and at the same time reduce the labor intensity and physical energy loss of the breeder.
· Silo : 7.6T
· Auger type feed uploading device for silo : hot dip zinc
· Drive Motor : motor(wanxin), 1.1KW 380V 50HZ 3-PHASE
· Feed sensor : IFM KI0209(CE standard)
· Main feed line : ∅75mm Auger is imported from south Africa
· Feed drop part : ∅75mm include soft pipe

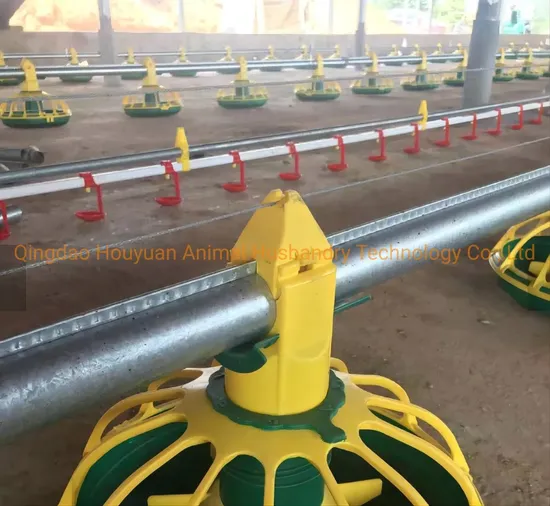

2. Automatic Pan Feeding Line System
The automatic feeding system will transmit the food from the hopper to the feeing pan. It is clean and can prevent the food from pollution.
· Feed Pan : 4 pans/3 meters
· Driving Motor : motor(wanxin), 0.75 Kw 380V,50HZ,3-PHASE
· V-Shaped Bin with Hopper : hot dip galvanized sheet
· Feed Tube : 4holes/3m/unit
· Feed Sensor : IFM from Germany, time delay range 0 to 2 hours.
· Hanging System : winch in the middle of house, hanging point 3m, all steel wire.
· Anti-roost System

3. Automatic Nipple Drinking Line System

The automatic drinking line system can keep the water source clean and pollution-free, which is beneficial to the healthy growth of broilers.
· Waterline Front System : Used to control the drinking system, including filter, water meter and doser medicator etc
· Pressure Regulator : 10-13KPA
· Main Water Inlet System : ∅32mm PVC
Connecting of Regulator and Re-flush Water Tube : include valve soft pipe
· Nipple Drinking System : 16nipples/4m/unit with drip cup
· Winch : 1500B
· Hanging System : 3m distance
· Water-level Display Pipe
· Anti-roost System

4. Ventilation System of Fan and Air Inlet

The automatic ventilation system can control the climatic conditions, air conditions, humidity and temperature of the chicken house, providing a comfortable and good environment for the growth of broilers.
· Ventilation Fan : 50'' (1.1KW,380V,50HZ)
· Inlet : motor(wanxin), 0.75 Kw 380V,50HZ,3-PHASE
5. Automatic Cooling Pad System
The cooling pad is ventilated, and it can adjust the humidity of the chicken house, filter the dust in the air and have good corrosion performance, thus creating a good environment for the growth of chickens.
· Cooling Pad : 16nipples/4m/unit with drip cup
· Ventilation Fan : 50'' (1.1KW,380V,50HZ)
· Winch : for pulling water line; for pulling deflector handle

6. Automatic Power Control and Environmenal System
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens.
· Environmental Handler : Temp R-TRON 620
· Electrical Control System : output power 50kw,CHINT configuration
· Wires and Accessories : China standard wire
7. Automatic Lighting system
· LED bulb : LED 6W
· Wire : water proofing
8. Automatic Heater System
Heating system can provide different temperatures for growing broilers in the house.

Product Skectch

Company Profile
Qingdao Houyuan Animal Husbandry Technology Co., Ltd. is located in the beautiful coastal city of Qingdao. The company was founded in 2014 with a total plant area of 10000 square meters. There are 50 production workers, including 10 professional technicians. In order to better meet the needs of customers, the company always adheres to the purpose of "Quality First, User First", continuously enhances the ability of scientific and technological development, and maintains close cooperation and exchanges with industry experts and professors of scientific research institutions. All kinds of livestock and poultry breeding equipment produced by the company have been widely praised by customers and maintain friendly cooperative relations with major breeding enterprises at home and abroad. Its products have been sold to more than 20 countries and regions such as the United States, Canada, Poland, Japan and the Philippines.
The company′s main equipment includes: chicken products, cattle products, pig products, sheep products, etc. The equipment category is complete, which can realize one-stop matching. The company is committed to a high-tech enterprise focusing on integrating animal husbandry machinery design, R & D, manufacturing, sales, installation and technical services. The company also mainly designs and provides livestock and poultry waste treatment system for small and medium-sized livestock and poultry breeding enterprises, including the manufacturing and processing of small and medium-sized intensive breeding complete sets of equipment, the manufacturing and processing of organic fertilizer intelligent equipment, the overall design and upgrading of small and medium-sized modern farms, and other directions. The products are widely used in the animal husbandry and breeding industry.
