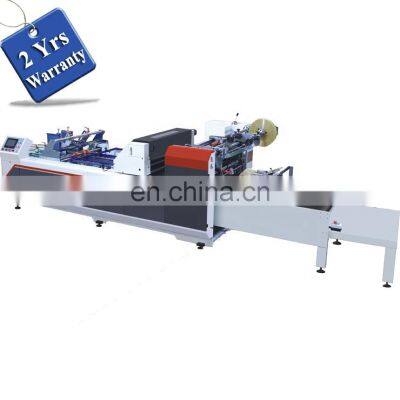

UTM850B underwear shirt medicine Automatic paper cardboard box Window patching Machine
Videos
Video demonstration only for reference
Video: /watch?v=K2u7pUEwBTQ
Product Description
Description:
The model UTM850B window patching machine is widely used for gluing transparent films on the windows of various carton boxes such as tissue box, medicine box and shirt box etc. The machine combines following five units: paper sheets feeding unit, positioning adjustment unit, gluing unit, film patching unit, delivery unit. Heavy duty steel structure equipped ensures the machine running in high stability and reliability.
Features
1, Rotary film cutting + Single group film applicator
2, Servo motor paper feeding
3, Servo motor film feeding
4, Paper receiving step move system with batch counting
5, Paper vacuum conveyor belt
6, Double sheet / empty sheet gluing rising automatically
7, Paper length L <260mm for double sheet mode (optional)
8, Film printing surface tracking (optional)
9, Film patching with hole punching (optional)
10, Tissue box film middle cut (optional)
Parameters:

Model	UTM-650B	UTM-850B
Max.Paper Size	W650xL550mm	780x780mm
Mini.Paper Size	110x110mm	110X110mm
Paper gram above	Kraft Paper:150-1200g/gsm White Cardboard:230-1200g/gsm Corrugated Paper:≤3mm	Kraft Paper:150-1200g/gsm White Cardboard:230-1200g/gsm Corrugated Paper:≤3mm
Max.Film	W290xL300mm	W 400xL430mm
Mini.Film	W30xL50mm	W30xL50mm
Film Thickness	CPE/PE:0.1-0.3mm PVC:0.08-0.25mm APET/PET:0.06-0.2mm	CPE/PE:0.1-0.3mm PVC:0.08-0.25mm APET/PET:0.06-0.2mm
Max Film Unwinding Diameter	400mm	400mm
Paste error	±2mm	±2mm
Maximum Speed	Paper L≤260mm:30000pcs/h Paper L>260mm:15000pcs/h	Paper L≤400mm:30000pcs/h Paper L>400mm:15000pcs/h
Servo Motor	Driving part: Paper feeding department 1 set film delivery department 1 set	Driving part: Paper feeding department 1 set film delivery department 1 set
Stepping Motor	Driving Parts: Automatic paper receiving 1 set	Driving Parts: Automatic paper receiving 1 set
Machine Size	L540xW130x160cm	L540xW145xH160cm
Power	380/415V 50/60Hz 5KW	380/415V 50/60Hz 7KW
Overall Weight	1800kg	2300kg

Detailed Images
Paper Feeding Section:
Adopt belt feeding paper, it is suitable for coated, reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.
Operating Interface:
All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button.
Paper Transmission Correcting Rail:
Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.
Vacuum Conveyor:
Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting.It runs steadily at high speed and has high precision.
Paper Stacking Section
Single stepper motor controls the operation of paper-collecting belt. Paper-folding distance can be adjusted wholly or segmentally and run at multi-speed.
Rotary Film Cutting and Sucking Unit
Film cutting hob is a local sectional design. Compared with traditional whole section cutting, it has lower noise, less vibration, more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.
Reliable Electricals
Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high.
Additional Parts Available to be Added:
1.Paper towel box film opening device can be installed to open or cut off the local film.
2.A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same.
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
