High Quality Electric Folding or Curving Bender 3D CNC Hydraulic Bneder Automatic Pipe Bending Machine Used for Furniture and Chairs (GM-SB-76CNC-2A-1S)

Product Description

Brief Introduction on Pipe Bending Machine
Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.

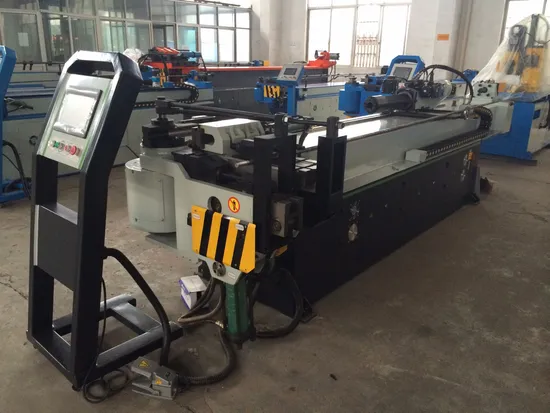

Rotating (Z-Axis): Controlled by Servomotor. GM-SB-76CNC Full-Auto Numerical Control
Single-Head Bending Machine
Model:76×2A×1S Machine Characteristics GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are bothe driven by servo motor. Pipe bending(C axis) is hydraulic by cylinder. Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	76*5
Bending Radius Range	mm	30-350
Max. Bending Angle	°	190
Bending Speed	°/sec	30
Turning Speed	°/sec	160
Feeding Speed	mm/sec	800
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	1
Feeding Servomotor Power	kW	1.5
Though Effective Distance	mm	4000
System Motor Power	kW	7.5
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	25
L*W*H (Packaging Dimension)	mm	5300*1300*1500
Weight	T	3.5

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Suzhou Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

FAQ 1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.
2. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
3. Q: What certificate do you have?
A: We have both ISO and CE certificate.
4. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to
Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to
Wuxi railway station.
