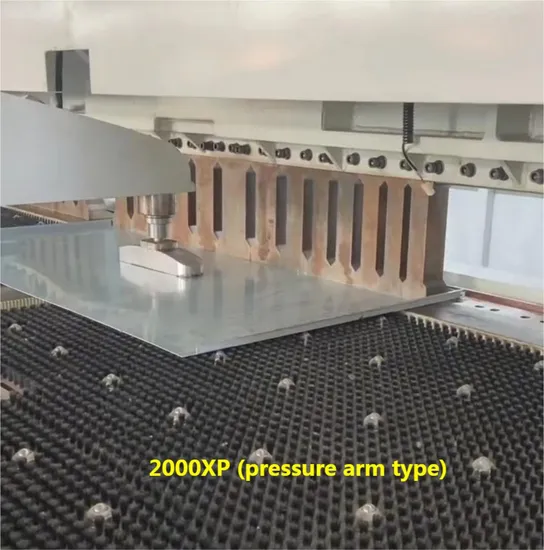

2000XP (pressure arm type) Bending Center Sheet Metal Automatic Bending Machine

Product Description

Product Description
2000XP (pressure arm type) bending center sheet metal Automatic Bending machine, Low price and high performance.
Flexible bending center can be widely used in the field of steel cabinet shell (file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......)
Kitchen utensils (refrigerators, air conditioning, cookers, stainless steel kitchen cabinet, dishwashers, stainless steel wine cabinet......)
Furniture, ventilation equipment, refrigeration equipment, purification equipment, elevators and other related metal forming fields
This equipment can easily realize the circular arc, dead edge, back, closed, positive and negative edges and other complex sheet metal bending requirements.
This flexible bending center uses the universal bending mold, only a set of molds can complete all shapes of bending, the user does not need to customize the mold.
Description of the core components:
Box-cage welded bed body:
Using high standard 80mm thickened steel plate integral box cage structure, triangle interconnection design, after accurate finite element force analysis. The welding adopts CO2 full welding process. After the frame is welded, after high temperature annealing treatment and machining, which ensures the anti-distortion deformation of the bed body and the long micro stability for many years, with no risk of cracking. The appearance is ergonomic and beautiful.
processing technic
1. Eliminate stress treatment: castings and welding support table, multiple tempering, annealing and other heat treatment processes, to ensure long-term use without deformation.
2. Precision machining: Different tooling fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to refine the workpieces to ensure the consistency of the accuracy before and after the clamping.
3. Strict detection: using high precision micrometer, with high stability marble platform and marble ruler, accurate measurement for the workpiece, and strictly control the processing accuracy of each workpiece.
The system reserves a rich industrial 4.0 interface, which can dock with the robotic arm to realize automatic loading and unloading. With good system security and reliability, with complete self-diagnosis ability, to provide great flexibility for the equipment.
With the self-drive robot arm, it is in the same control system as the bending center. Change the workpiece without secondary programming. The system automatically generates the action program of the robot arm according to the bending command, which has higher efficiency and better coordination.
Detailed Photos


Product Parameters

Delivery method	Pressure arm
location mode	The three sides of the Y axis depend on the ruler
Adapt material	Stainless steel, aluminum plate, cold plate
The sheet is the most bushthickness	0.15mm
The plate is the most built	Stainless steel 1.2mm, ordinary carbon steel plate 2.0mm, aluminum plate 3.5mm
External dimensions of sheet raw materials	Max., 2,000,2,000 mm
	Minimum of 250-400 mm
Plate requirements	The surface is smooth, the edge is no burr, and the opening size is accurate
The fastest bending speed	0.3 Seconds / time
Maximum bend throat height	180mm (customizable to 600mm)
rated voltage	380V
Electric assembly power	≈45KW
Average energy consumption	At 4KW / hour
noise	≈50dB
outline dimension	520x380x280 cm
gross mass	≈15T
number of axles	Standard 12 axis
Automatic computer spell knife and scan code recognition	apolegamy
