Fully Automatic Facial Tissue Machine Production Line V Interfolded Facial Tissue Folding Machine with Auto Transfer System

Product Description

Product Description
How to start a smaller facial tissue/paper tissue machines production? which machines shall be needed? -one set of Facial Tissue folding machine
-one set of Facial Tissue Log Saw Cutting Machine,
-one set of Full Automatic Facial Tissue Wrapping Machine
-one set of Automatic Facial Tissue Bag Bundle Packing Machine.
There are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.
Funtions The max speed of Fully automatic Facial Tissue Folding Machine can reach 100-130 m/min ♦ Easy operation and maintenance, save space, need only one operator transfer tissue log after running machine; ♦ Customer can select our automatic cutting machine so that greatly improve production efficiency and ensure tissue without second pollution by human hands; ♦ The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
Details Facial tissue paper making machine can be applied to face towel paper, wipe paper, non-woven soft towel, cleansing towel and other extraction products folding and cutting, a machine multi-use and pay back quickly; Complete series of removable pull-out type facial tissue folding machines are used to facial tissue into chain-type cross-folded rectangular pieces after the base paper is cut with a knife roller;
The folded facial tissue paper can be pulled out one by one by each pulling so that the facial tissue can be used conveniently and kept clean; Adopting vacuum suction and automatic fold counting function, with such advantages as high speed, neatly folding, and easy to operate etc.
Product Parameters

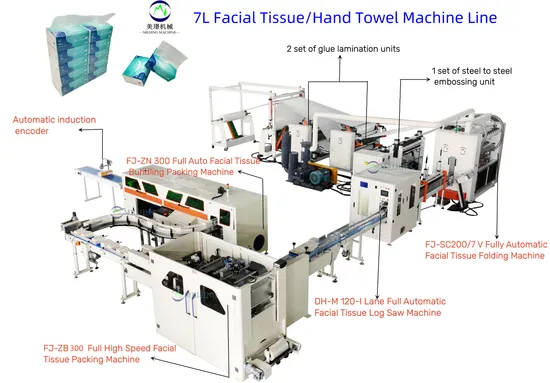

Facial Tissue folding machine with transfer system
FJ-SC 7-14 Line Full Automatic Facial Tissue Folding Machine
1. PLC control & touch screen; 2. Driving by independent motor & for each station;
3. Adjust paper tension on touch screen;
4. Adopts vacuum suction & automatic fold counting function,advantages with high speed, neatly folding;
5.Stepless speed regulation unwinding, adapt to the high and low tension of the base paper;
6. With jogging button and Emergency button on machine;
7.The machine will stop when the paper broken to avoid waste caused by no paper or paper broken.

Name	Facial Tissue Folding Machine
Capacity (10 hours)	1-6 tons depend on your request
Speed	1000-1200 sheets/min/line for two jumbo rolls
Power	5.5-34.5 KW380V50Hz, 3Phase
Size	(6-13m)*(1.5-4m)*2.1m
Weight	7 tons

Log Saw Cutting Machine DH-M 120-I Full Automatic Facial Tissue Log Saw Machine
1. The machine will cut the facial tissue;
2. Adopt frequency control, PLC , servo tracking control to realize automatic control system;
3.The cutting size is adjustable freely;
4. The servo system can guarantee the cutting size is more precocious;
5. Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming;
6. Equipped with blade sharpening frequency;
7. The machine will connect with facial tissue folding machine and packing machine to be production line.

Name	Facial Tissue Log Saw Cutting Machine
Application Object	Facial Tissue
Capacity (10 hours)	36000piles-84000piles
Speed	100 cuts/min, 1 stack/cut; 100 cuts/min, 2 stacks/cut
Power	9Kw
Size	4.3*1.6*1.8m
Weight	3-4 tons

Full Auto Facial Tissue Nylon Bag Packing Machine
FJ-ZN 100-150 Full Auto Facial Tissue Bundling Packing Machine
1. Adopt packing method by wrapping, folding and sealing with compact structure and high product appeal;
2. Adopts advanced PLC computer program, human-machine interface operation;
3. Automatic tailing, automatic push function,cutting and sealing;
4. Emergency stop/pause control function,safe power off, pressure protection;
6. Sealing and cutting device adopts temperature control design, good sealing effect, no broken bag.

Name	Facial Tissue Single Wrapping Machine
Application Object	Facial Tissue Nylon Single Packing Type
Capacity (10 hours)	48000 bags-72000 bags depend on your request
Speed	80-120 bags/min
Power	6.83 KW380V50Hz,3Phase
Size	4*3.8*2m
Weight	1-2tons

Optional Machine: Facial Tissue Bag Bundling Packing Machine FJ-ZN 300 Full Auto Facial Tissue Bundling Packing Machine
1. Full automatic run. High speed.Suitable for packing bundling rolls(3,4,5,6,8,10 bags in one bag);
2. Can be connected with log saw or single roll wrapping machine;
3. Servo system,PLC controlled;
4. Auto feeding, auto adjustment. Adopting high quality sensors;
5. Operated by color touch screen display;
6. Emergency stop/ pause function, safety alarm system, air and electric power protection system;
7.Adopting constant temperature sealing and cutting system.

Name	Automatic Facial Tissue Bundle Packing Machine
Application Object	Facial Tissue Bundle Packing Type
Capacity (10 hours)	9600 bags-12000 bags depend on your request
Speed	20-25 bags/min
Power	17 KW380 V50 Hz,3 Phase
Size	5.8*1.8*1.8m
Weight	3-4tons

FJ-BY Full Automatic Facial Tissue Box packing Machine
1.It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues, cotton tissues etc;
2.High capacity. Running speed is 80-90 boxes/minute;
3.Rapid production changing. It only takes 10-20 minutes to change the specifications;
4.Convenient operation. It is easy to control the paper feeding and PLC control system;
5.Low cost. The glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.

Name	Automatic Facial Tissue Boxing and Sealing Machine
Application Object	Pack Box Drawing Facial Tissue ,Hand Towel
Capacity (10 hours)	30000-36000 boxes or 36000-48000 boxes
Speed	50-60 boxes/min or 60-80 boxes/min, need order
Power	5.1 KW,380 V, 50 Hz, 3 Phase
Size	2.7*1.7*1.5 m
Weight	1000-2000 kg

Finished Product

Why Choose Us
Foshan Meijing Machinery Manufacture Co., Ltd. established in 2005.We are well-known manufacture more 18 years experience, specializes in machinery for paper tissue in China, a professional manufacturer and specialized in household paper tissue converting machines and ancillary machinery
We are dedicated to the creation of high-quality and advantage design machines that remain to meet different market products demands. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Debugging equipment and technical personnel in the company under the guidance of theory and practice of the user's technical training.
Packaging & Shipping
Certifications
FAQ
Q1: What is the Warranty for the machine?
we have 2 years warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost, After Warranty, it is our duty to keep after service and support your production at any time. Q2: How to operate and maintain the machine? First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service Q3: What is the price of production line? 1. Please tell me what's the width of jumbo roll(raw paper) will you process? 2. Do you need embossing unit or lamination unit? 3. What's the daily capacity of machine do you need? We need to know the details of the machine ,then can give you the best price. Q4: Can i get the paper roll sample from you? We are very glad to send different paper products samples, to help you understand and find more better products position in your local market.
