Heavy Duty Lathe Machine Tool Slant Bed Turret CNC Lathe TT5050YF

Product Description

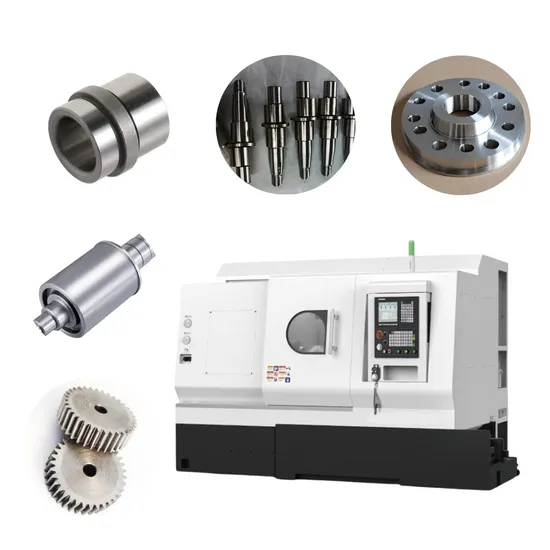

TT5050YF CNC Lathe Machine
Main features: Composite Y-axis layout structure.
Modular design, standard servo tailstock, optional auxiliary spindle.
High-precision spindle bearing structure.
Realize the accurate docking of main and auxiliary spindles and carry out back turning.
12-position high rigid power turret, fast tool change.
Floor separated water tank, easy to clean.
Specification:

Model No.	TT5050YF
Basic
Chuck size	8 inch*
Swing diameter over bed	Ø 550 mm
Swing diameter over slide	Ø 450 mm
Max turning dimension	Disc Ø 340 mm
Max turning length	500mm
Bar through hole	Ø 50 mm
X/Z/Y/C axis travel	220mm/600mm/±50/360°
X/Z/Y/C axis rapid travel speed	24/24/10 m/min
Repeatability accuracy X/Y/Z axis	0.003/0.005/0.005 mm
SPINDLE
Spindle speed	4000r/min
Spindle nose	A2-6
Spindle through hole	Ø 71 mm
Sub-spindle*(optional)
Spindle speed	4000 r/min
Spindle nose	A2-5
Spindle through hole	Ø 48 mm
Travel	550 mm
Powered turret
Tools	Powered turret
Turret positions	12 stations
Max.milling capacity	Milling tool Ø 20 mm Milling depth 10mm Feeding 40mm/min
Max.drilling capacity	Drilling dimension Ø 20 mm Feeding 0.13 mm/r
Max.tapping capacity	Tapping dimension M12
Machine Dimensions
Overall dimension(L×W×H)	3150×150×2100mm
Weight	4500 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
