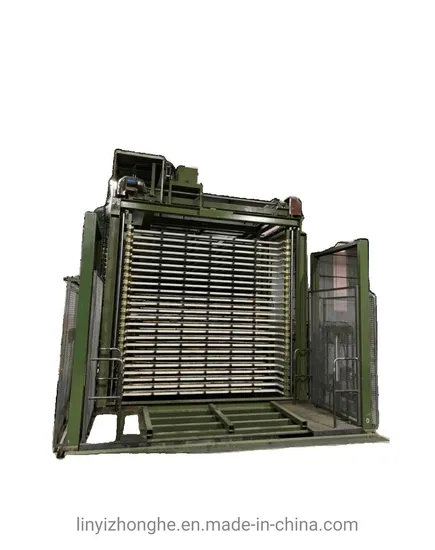

600 Tons 25 Layers Hot Press China Machine Woodworking Machinery

Product Description

No.	Model	RYJ-48-600T-25
1	nominal pressure	600 Tons
2	main frame	top cross beam height 900 mm
		bottom cross beam height 900 mm
		middle cross beam height 400 mm
		vertical plate width 400 mm
		main steel thickness 30 mm
		vertical steel frame 370 mm, 4 pieces
3	Steel grade	Q235
3	distance between plates	80 mm
4	hot press plates	size 1370*2700*42 mm , 26 pieces
		inside channel double in double out
5	main hydraulic cylinders	diameter 280mm, stroke 2000 mm, 4 pieces
6	heating methods	steam
7	hydraulic sytem	rated working pressure 26 M pa
		high pressure pump 25 ml 1 piece, 11 KW motor 1 piece
		middle pressure pump 75 L 2 pieces , 22 KW motor 2 pieces
9	control system	automatic pressure and time control
10	total motor power	55 KW
11	machine size	3560*1370*5250 mm
12	machine weight	51000 KG

FAQ
1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.
