China Official 37m 39m Concrete Boom Pump Truck Sy5230thbf 370c-10
Basic Info.
Model NO.
Sy5230thbf 370c-10
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1580mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Emission Standard
Euro V
Max. Power /Kw
290
Transfer Tube
Rock Valve
Pipeline Diameter
125mm
Overall Dimensions (L´w´h)
11160×2500×3990mm
Overall Weight
31000kg
Axle Numbers
3
Transport Package
Roro
Specification
11160× 2500× 3990mm
Trademark
ORIEMAC
Origin
Xuzhou, Jiangsu
HS Code
8705909100
Packaging & Delivery
Package Size
30.00cm * 40.00cm * 50.00cm
Package Gross Weight
100.000kg
Product Description

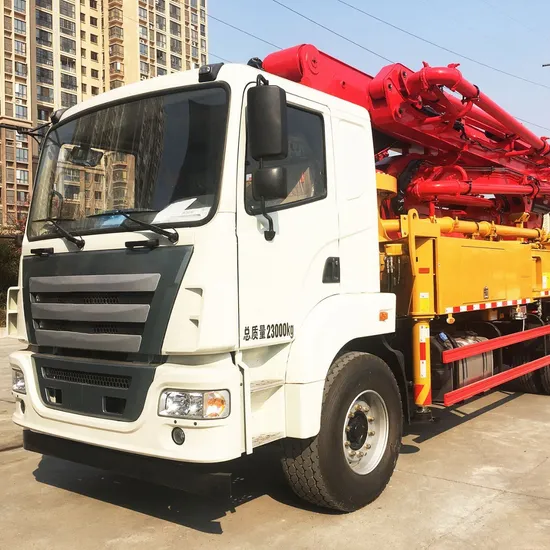

Product DescriptionHot sale San-y concrete pump truck mounted with 37m boom best price
Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing. Product Parameters
| Description | Unit | Parameter value |
| Maximum vertical reach | m | 37.1 |
| Maximum horizontal reach | m | 32.8 |
| Maximum depth reach | m | 25.6 |
| Minimum unfolding height | m | 8 |
| Section numbers | 5 | |
| Boom type | RZ | |
| Pipeline diameter | mm | 125 |
| Maximum theorical output | m3/h | 100/60 |
| Maximum theorical pressure on concrete | bar | 80/150 |
| Concrete cylinders (diam. × stroke) | mm | 230 x 1650 |
| Hydraulic circuit | Open | |
| Engine power | kw | 228 |
Detailed Photos
