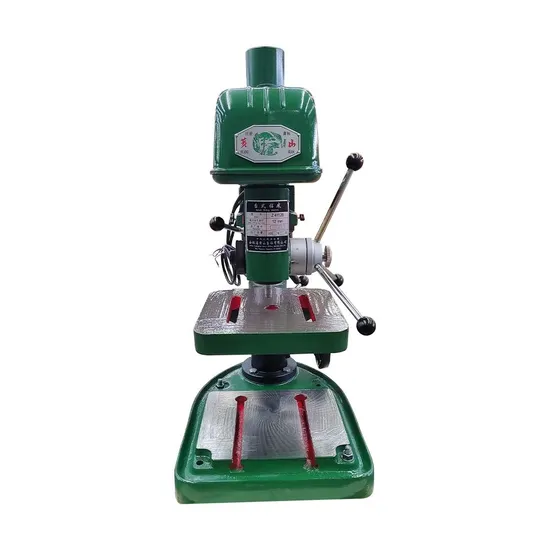

Model 220V 1100W Two Function Drilling and Milling Heavy Duty Factory Price Supply Bench Drilling Machine
| US$749.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z4125B/25B
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
ISO 9001
Condition
New
Model
Z4125b/25b
Max. Drilling Capacity
25mm
Diameter of Column
85mm
Max.Spindle Travel
125mm
Morse Taper of Spindle Nose
Mt.3
Spindle Speeds
340-570-1000-1800 R/Min
Size of Worktable
290*320mm
Size of Base Worktable
335*335mm
Distance From Spindle Axis to Column Sur
242.5mm
Distance From Spindle Nose to Worktable
0-265mm
Distance From Spindle Nose to Base Surfa
262-545mm
Motor
1.1kw
Gw/Nw
160/140kg
Ship Measurement
86*47.6*101.3cm
Transport Package
Wooden Box
Specification
86*47.6*101.3cm
Trademark
no
Origin
China
Production Capacity
5000pieces/Month
Product Description
| Model | Z4125/25B |
| Max. Drilling capacity | 25mm |
| Diameter of column | 85mm |
| Max.spindle travel | 126mm |
| Morse taper of spindle nose | MT.3 |
| Spindle speeds | 340-570-1000-1800 r/min |
| Size of worktable | 290*320mm |
| Size of base worktable | 335*335mm |
| Distance from spindle axis to column surface | 242.5mm |
| Distance from spindle nose to worktable | 0-265mm |
| Distance from spindle nose to base surface | 265-545mm |
| Motor | 1.1kw |
| GW/NW | 160/140 kg |
| Ship measurement | 86x47.6x101.3cm |
Product Description
Industrial Grade Multifunctional Bench Drill
Thickened cast iron base
Copper wire motor
Double scale
1.Multi-purpose Machine Easy to Deal with
Stable cast iron base, integrated motor powerful power and multiple functions.
2.One Machine for Multiple Purposes
Suitable for metal/wood/stone/plastic and other materials, tapping and drilling.
3.Excellent Details Create Excellent Experience
Quality reflected in every corner
(1)High Power Copper Core Motor
Made of high-purity copper wire,durable, fast speed, low power consumption and fast heat dissipation.
(2)All Steel Handle Fast and Precise Lifting
Unscrew the locking buckle, adjust the lifting handwheel, and lift the drill bit quickly and accurately.
(3)Balanced Adjustment Pulley Durable and Non-slip
The pulley is adjusted through dynamic balance to ensure stable rotation, reduce vibration and make it quieter.
(4)High-quality Lifting Handwheel
Quickly and accurately lift, loosen the locking buckle, adjust the lifting handwheel, and complete the lifting.
(5)High-Precision Metal Drill Chuck
The stainless steel chuck is powerfully clamped to ensure that the drilled holes are not offset and are stable and do not fall off.
4.Factory Direct Sales Source factory, quality assurance
Win tomorrow with trust in quality
