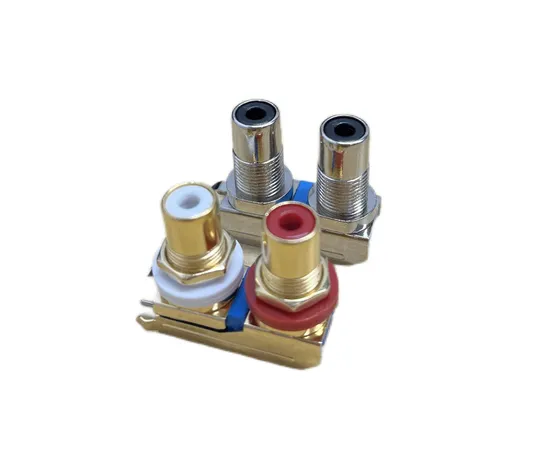

RCA02 Dual Unit RCA Connector Audio Jacks Sockets RCA Video
| US$2.80-3.50 | 2,000 Pieces (MOQ) |
Basic Info.
Model NO.
RCA02
Gender
Female
Certification
ISO9001
Application
UHF, Automobile, Amplifier
Contact Material
Copper
Surface Treatment
Gold Plating
Housing
Copper Alloy
Rating
30V/DC.1.0A
Transport Package
Tray+Carton Box
Specification
Copper
Trademark
SANNI
Origin
Dongguan
Production Capacity
10000PCS/Month
Product Description
1.Electrical characteristics:| Rating: | 30V/DC.1.0A |
| Contact resistance: | 30mΩ Max |
| Insulation resistance: | 100mΩ Min |
| Dielectric withtanding voltage: | 500V AC RMS After 1 Minute |
| Insertion force: | 30N Max |
| Withdrawal force: | 8N Min |
| Withdraw force for center contact: | 5N Min (Use a 0D=3.2±0.05mm,Length=14±0.20mm gauge plug) |
| The terminal shall be capable of with standing a force of 30N applied in pulled direction for 5 seconds.Without loosing and breakdown,but deformation of terminal is accepted) |
