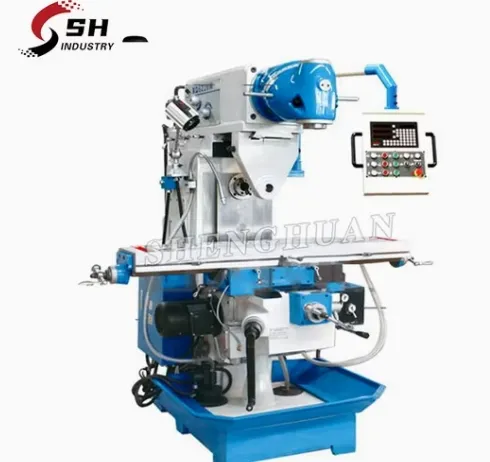

Universal Swivel Head Milling Machine Xq6232 China Milling Machine
| US$3,500.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XQ6232
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Universal Swivel Head Milling Machine Xq6232 China
Max Horizontal Milling Dia.(mm
100
Max Vertical Milling Dia.(mm)
28
Table Size
1250*320
Table Travel
600*340
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459590000
Packaging & Delivery
Package Size
152.00cm * 163.00cm * 220.00cm
Package Gross Weight
1550.000kg
Product Description
Universal Swivel Head Milling Machine XQ6232 China Milling MachineProduct Description
Features:
1.Hardened guideway
2.X.Y axis auto feeding, Z axis motorized lift
3.Mill head swivel ±360 degree with high performance
4.Table swivel 45 degree
Main technical specifications:
| Specifications | XQ6232 |
| Spindle taper | ISO40 |
| Max horizontal milling dia.(mm) | 100 |
| Max vertical milling dia.(mm) | 28 |
| Table size | 1250*320 |
| Table travel | 600*340 |
| Motor(kw) | 3 (V/H) |
| Distance from spindle nose to table surface(mm) | 100-500 |
| spindle speed range (r.p.m) | 35-1600(V) 40-1300 (12)(h) |
| Package size(mm) | 1520×1630×2200 |
| N.W/G.W (kg) | 1550/1700 |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
