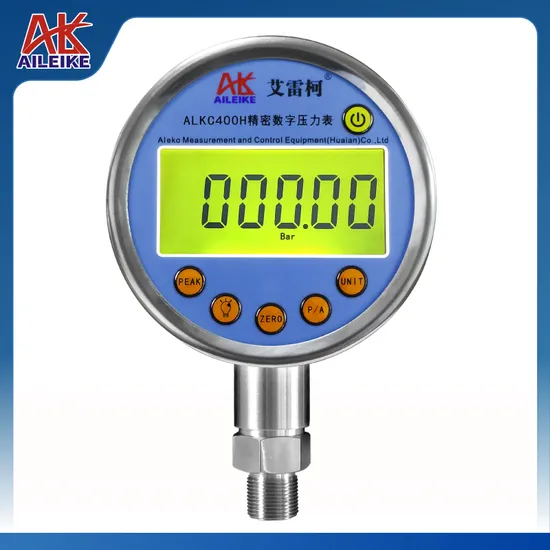

Digital Oil Pressure Gauge Precision Digital Pressure Gauge Air Pressure Gauge 0.05%Fs
| US$442.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ALKC400H
Measuring Range
Medium-pressure Gauge
Type
General Pressure Gauge
Accuracy
0.05
Display
Digital
Application
Industrial
Structure
Digital Display Pressure Gauge
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Transport Package
Carton
Specification
0.6kg
Trademark
AILEIKE
Origin
Jiangsu
HS Code
9026209090
Production Capacity
5000
Packaging & Delivery
Package Size
29.00cm * 26.00cm * 13.50cm
Package Gross Weight
1.700kg
Product Description
| Gauge pressure | |
| Range ( Unit: bar ) | Price (Unit: USD) |
| -0.6~0.6bar | 442 USD |
| -1~0bar | 442 USD |
| -1~1bar | 442 USD |
| -1~1.6bar | 442 USD |
| -1~10bar | 442 USD |
| -1~16bar | 442 USD |
| -1~25bar | 442 USD |
| -1~40bar | 442 USD |
| -1~60bar | 442 USD |
| -1~600bar | 442 USD |
| 0~1bar | 442 USD |
| 0~2.5bar | 442 USD |
| 0~6bar | 442 USD |
| 0~10bar | 442 USD |
| 0~16bar | 442 USD |
| 0~25bar | 442 USD |
| 0~60bar | 442 USD |
| 0~100bar | 442 USD |
| 0~160bar | 442 USD |
| 0~200bar | 442 USD |
| 0~250bar | 442 USD |
| 0~300bar | 442 USD |
| 0~400bar | 442 USD |
| 0~500bar | 442 USD |
| 0~600bar | 442 USD |
| 1 | 2 | 3 | 4 | 5 | 6 |
| Peak Value H1:Display peak value L0:Display valley value | Backlight Backlight on after pressing the button | Zero calibration Under no pressure conditions One click reset | ON/OFF One click power on/off | Unit switch bar,kpa,mpa, psi,mmHg,kgf/cm2 | Back Space Return to the main function menu |
| Product name | Precision digital pressure gauge |
| Model | ALKC400H |
| Measuring range | -1~0~600bar |
| Accuracy | 0.05%F.S |
| Switching between 6 units | Bar,mpa,kpa,mmHg,psi,kgf/cm2 |
| Customized processing | Yes |
| Overload capacity | 1.2 times the upper range limit |
| Connection method | The default thread size is M20 × 1.5. If you need other thread sizes such as Bsp 1/2, G1/4, NPT1/4, G1/2, NPT1/2, etc., other special thread sizes can also be customized |
| Environment | -10~50ºC |
| Electric source | External charger 220VAC 50Hz 3VA |
| Charging Voltage | 8.4V |
| Built-in Lithium Battery | 7.4V 1300mAh |
| Shell material | 304 stainless steel |
| Measuring medium | Air,water,oil and other non corrosive media for stainless steel |
| Weight | Approximately 0.6kg(pressure gauge body only) |
| Weight of instrument box | Approximately 0.8kg |
| Instrument box size | 260×215×110mm |
| Product weight | Approximately 1.7kg (packaging material iscardboard box) |
| Product packaging size | 290×260×135mm |
ALKC400H series precision digital pressure gauge in addition to high accuracy calibration standard (table), also can be used as a working instrument. Widely used in metallurgy, petroleum, chemical, electric power, natural gas, measurement and other departments.
