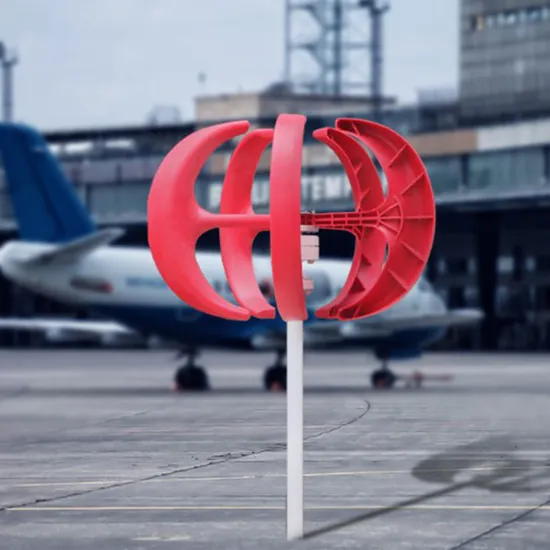

400W 12V/24V Vertical Axis Wind Energy System Red Lantern Wind Turbine
Basic Info.
Model NO.
NE-400R
Output Type
AC Three Phase
Number of Blade
Three Blade
Rotating Shaft
Vertical
Stress Way of Blade
Resistance
Power
＜10kW
Phase
Single-Phase
Certification
CE, ISO
Product Name
Wind Turbine
Rated Power
400W
Start up Wind Speed
2m/S
Survival Wind Speed
45m/S
Rated Wind Speed
13m/S
Rated Voltage
12V/24V
Transport Package
Standard Carton
Specification
18kg
Trademark
Bessent
Origin
Jiangsu
Production Capacity
10000 Units Per Month
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 60.00cm
Package Gross Weight
18.000kg
Product Description
400W 12V/24V vertical axis wind energy system red lantern wind turbineProduct Parameters
| Model | NE-100R | NE-200R | NE-300R | NE-400R |
| Rated power | 100W | 200W | 300W | 400W |
| Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Start up wind speed | 2m/s | 2m/s | 2m/s | 2m/s |
| Rated wind speed | 11m/s | 11m/s | 12m/s | 13m/s |
| Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s |
| Wheel diameter | 0.9m | 0.9m | 0.9m | 0.9m |
| Wheel height | 0.6m | 0.6m | 0.6m | 0.6m |
| Weight | 11kg | 11.5kg | 12kg | 14kg |
| Blades number | 5 | 5 | 5 | 5 |
| Blades material | aluminum alloy | |||
| Generator | 3 phase permanent magnet AC generator | |||
| Control system | Electromagnet | |||
| Speed regulation | Automatically adjust windward direction | |||
| Working temperature | -40°C~80ºC | |||
Working Structure
Company Profile
Certifications
FAQ 1. Q: Is installation easy?
A: Yes, very easy. Every customer can do it by themselves. We supply you all the components and the isntallation manual.
2. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed 3m/s, so if your average annual wind speed is more than 5m/s, it
can works well.
3. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How much watts are they? How long do they work?
2. Your average annual wind speed.
3. What kind of system do you want? On-grid or off grid?
4. Q: Can I only buy parts of the whole system?
A: Yes, you can only buy wind turbine, controller, inverter etc.
