3D Printing Printer Filament Extruder Production Line Making Machine

Product Description

Build Your Own 3D Filament production factory With Us
Our 3D Printer Filament Extrusion Machine is equipped with diameter automatic feedback system.
1,Application:
The Filament Extruder Machine is used to make 3d printer filament,The filament is widely used in many different industries,such as mould making,Shoes, industry designing, as well as medical.
2, Speficication of our extrusion line:
1. Higher capacity compared with other suppliers same model extrusion line.
2. Low tolerance:+/-0.02mm, even+/-0.01mm.
3. It can produce different diameter filaments from 1.75mm-3.0mm.
4. Easy operation: PLC full-automatical control system.
5. Produce different raw material: ABS PLA PA HIPS PETG PEEK PCL etc.
6. We can provide installation services overseas

---Our 3D printer filament line is equipped with our 5th generation new type double disc winding machine, this new generation rotatable double disc winding machine is designed and produced by our company, it is our 5th generation winding machine, compared with traditional single disc or old type double disc winding machine, the new double disc Auto winding machine can shorten the spool changing time to not more than 25 sec.

This new design winding machine can really save time and improve efficiency, when spool 1 is full, it can automatically rotates into spool 2 position, at same time, empty spool 2 will be in the postion of spool 1, the workers cut the filament, and feed the filament into spool 2, the winding machine keeps working when the worker takes the full spool out.


---Our filament extrusion line adopts PLC automatic PID control system, the diameter of the filament does not need manual adjustment, the PLC system can automatically control and adjust the diameter of the filament, at the same time, we can also add remote control system if customer needs it.

---The application of 3D printer filamentBased on the analysis of the characteristics and performance of different structures of 3D printers and consumables, we have a clear understanding of the working principle of 3D printers. We believe that plastic materials will remain the mainstreammaterial for 3D printing for a long time.


We have different machine models with different capacity for your choice:

Model	Power	Diameter	Capacity	Tolerance	Material
PL-25	2.2 KW	1.75mm-3mm	3-5Kg/h	+0.02mm	PLA ABS HIPS PA PET Nylon PP
PL-30	4 KW	1.75mm-3mm	10-15Kg/h	+0.02mm	PLA ABS HIPS PA PET Nylon PP
PL-45	7.5 KW	1.75mm-3mm	20-25Kg/h	+0.02mm	PLA ABS HIPS PA PET Nylon PP

This Filament Extruder Machine is composed by following parts:

No.	Item	Qty
1	Hopper Dryer	1 Set
2	Single Screw Plastic Extruder	1 Set
3	Die	2 Sets
4	Hot & Cooling water cooling tank	2 Sets
5	Horizontal storage rank	1 Set
6	Backstop machine	1 set
7	Haul-off machine	1 set
8	Winding machine	1 set

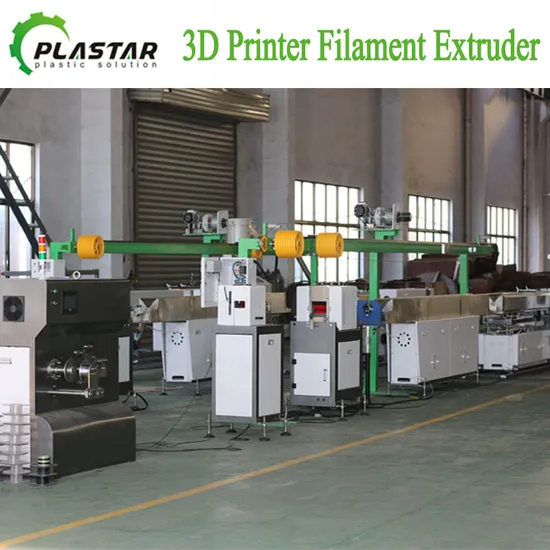

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
Company introduction:
Zhangjiagang Plastar Machinery Co.,ltd. is the professional manufacturer for kinds of plastic machines, such as 3D printer filament extruder, plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of our company is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by PLASTAR Machinery to new and old friends. We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits.

If you have further inquiry,please contact with us at any time!
