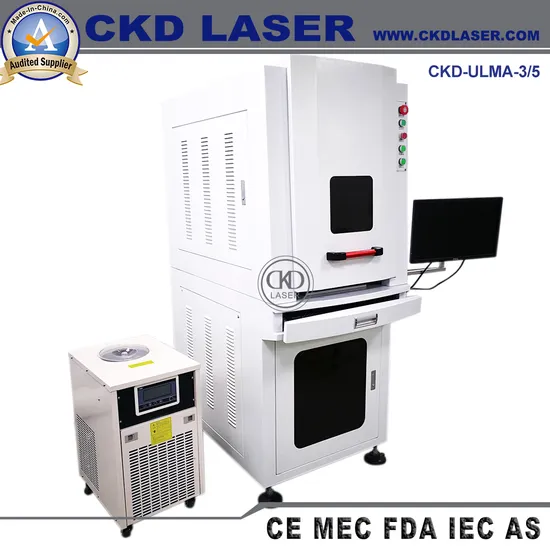

Full Sealing UV Laser Marking Machine for Glass Stone Acrylic Ceramic Chips Series Qr Number

Product Description

CKD-UMLA series has two types, CKD-UMLA-3 and CKD-UMLA-5, the corresponding UV laser power is 3W and 5W. Professional for marking black logo, series number, characters on glass, acrylic, plastic and so on.
Please send your material details information and demand details to us if you need higher configuration recommend, such as:
* How many piece you will mark.
* What is the marking size you need?
* Your design special demand.
* What kinds of materal are they?
* Other specific questions, please list also, so that we can help you more.APPLICATION
Cosmetics, electronic products, health products, hutch defends equipment, gifts, handicrafts, advertising materials, household appliances, medicine, and so on.
MARKING MATERIAL
Solid metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Solid non-metal: Glass, agate, jade, jade, porcelain, acrylic, ABS, PVC, acrylic (non-transparent), EP, HDPE, PC, plastic alloy, ink and paint face, etc.
WATER CHILLER
1: Computer displayer
2: Water chiller
When the door opened, the marking stop and the machine will alarm, with professional laser protect glass on the door.
3: Glavanometer: fast speed.
4: Lens: optional scope of 100*100/200*200mm.
5: Position board: with position bars, high precision.
6: Laser source: top quality.
7: Focus reader: because preview indicating light of UV laser is weak, with focus reader can help you find right focus easily, full consideration for users.
FOCUS READER
SMOKE EXHAUST CHANNEL
NOTICE: CKD-ULMA can add rotary, rotary is an optional attachment, other attachments above are standard including in the whole machine.
ADVANTAGES
* Smooth surface after marking, zero transformation, protect the material.
* Hight speed, easy operation
* Environment protection, and easily add exhauster on the machine.
* Easy to focus with electronic focus reader.
TECH PARAMETERS

Parameter	Unit	Data	Data	State
Type		CKD-UMLA-3	CKD-UMLA-5
Laser Type		UV Laser	UV Laser
Central Wavelength	Nm	355	355
Average Output Power	W	3	5	@30KHz
Pulse Width	ns	<20	<20	@30KHz
Pulse Repetition Rate	KHz	10-200	10-200
M²		<1.2	<1.2
Beam Diameter	mm	1.0±0.1	1.0±0.1	Measured at window
Beam full Divergence Angle	mrad	<1.2	<1.2
Beam Circularity	%	>90	>90
Pulse-to-Pulse Stability	%	<3	<3	RMS/@30KHz
Average Power Stability	%	<5	<5	RMS/8hr
Beam-pointing Drift	μrad/ºC	<30	<30
Polarization Ratio		>100:1	>100:1
Polarization Orientation		Horizontal	Horizontal
Operating Temp.& RH	ºC	10 to 30	10 to 30
	%	<90	<90
Storage Temp.& RH	ºC	-20 to 65	-20 to 65
	%	<90	<90
Power Source Requirement	VAC	100-240	100-240
		90-240V/50-60Hz/2KVA	90-240V/50-60Hz/2KVA
	W	<500	<500
Life of the laser source	hrs	10,000	10,000
Cooling mold		Water cooling	Water cooling
Computer		With	With
Marking software		EzCad2	EzCad2

MARKING SAMPLES SHOW
* Smooth surface marking without protuberance.
* Total darkness marking on PVC
* Not be out of shape after marking on thin metal, protect the material
* Multi material mark, compreshensive application
AFTER SERVICE
* Passed CE and FDA, located Shenzhen China, fast shipping speed.
* Buring and continually checking 24 hours before shipping, ensure each machine is excellent quality
* Professional technical engineers inspect the processing.
* Experenced FAE for after-sale consulting about marking practical application.
* 12 months guarantee, main parts shall be changed free of charge if there is any problem during the warranty.
* Support customized for specific application, such as automatic marking system and extension procedure.
PACKING & SHIPPING Shock absorber sponge inner packing and wooden box outer packing, safe and reliable.
Packing size and gross weight:

Type	Dimension (mm)	Weight (Kg)
CKD-UMLA-3	1000*650*1620	175
CKD-UMLA-5	1000*650*1620	177
Water Chiller	700*360*590	4
