Product Description

Hot selling big capacity automatic sunflower seeds sesame olive palm oil press machine plant auto soybean rapeed peanut cold screw oil presser Product Description
Application:
This screw oil press is advanced expeller which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, etc. And the product oil is for both edible and biodiesel fuel purpose. It has advantage of high efficiency, low consumption, simple operating, stable function, easy maintenance, high productivity and high oil output.
Advantage
1.Simple and easy operation,one key to start without other operating
2.High oil yield to the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance
Main data:

Model	6YL-165 oil press
Capacity	700-800kg/h for oil seeds
Power	30KW(380v/50hz/3p)
Residue oil in cake	Less than 7%
Size	2160x680x890mm
Weight	1200KG

Different model

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg/h	5.5kw	930x490x820	150kg
6YL-68C	50kg/h	5.5kw	930x575x1055	150kg
6YL-68J	50kg/h	5.5kw	930x575x1055	150kg
6YL-80	100kg/h	5.5kw	1307x550x1102	300kg
6YL-95	200kg/h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg/h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg/h	11-15kw	2150x610x1300	700kg
6YL-130	450kg/h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg/h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg/h	22-30kw	2280x620x1680	1300kg

More pictures and details about the screw oil presser

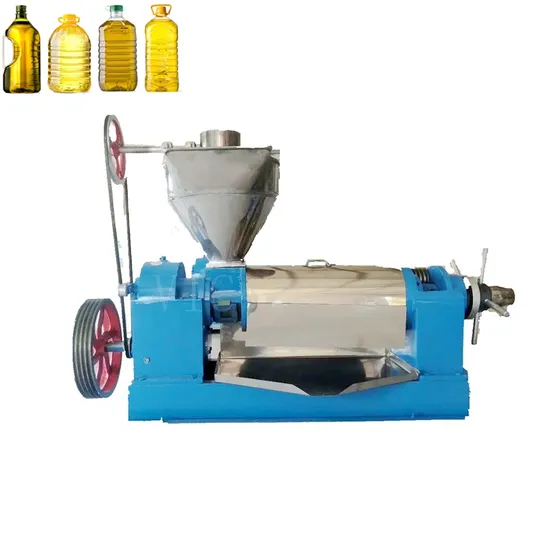

Sturcture for 6YL-165
Advanced automatic stirring forced feeding system(can choose stainless steel)
Gear box and pulley
Row and round row
Adjustment handle
Big cake out
Stainless steel cover and oil plate
Oil pressers in the factory corner
Control box
Other parts
Other oil press machines
Combined oil press machine with oil filters
Automatic feeding and dischaging integrated oil press machines
