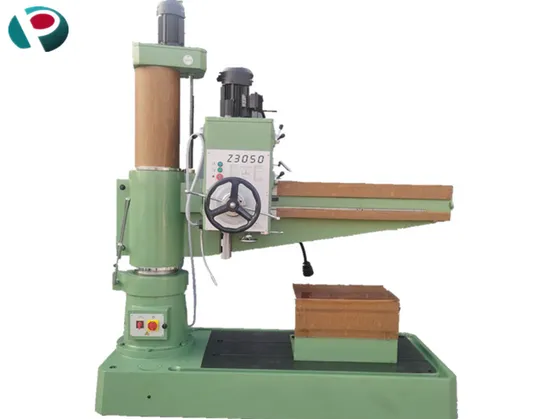

Z3040/Z3050 Directional Vertical Radial Drilling Machine Deep Drilling
| US$2,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040/Z3050
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450mm
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JEPPS
Origin
Shandong, China
Product Description
Product DescriptionProduct Parameters
| Main Parameters | Z3050×16 Radial Drilling Machine |
| Maximum Drilling Diameter (mm) | 48/50 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum - maximum) (mm) | 360-1600 |
| Distance from spindle end to base table (minimum-maximum) (mm) | 300-1150 |
| Spindle travel (mm) | 220 |
| Spindle taper | MT.5 |
| Spindle speed stages | 6 Level |
| Spindle speed range (r/min) | 78.135.240.350.590.1100 |
Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. How can I get a quotation?
A. Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2.What's your main products of your company?
A.We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
Q6. What is your trade terms?
A .FOB, CFR and CIF all acceptable.
Q7.What's the Payment Terms ?
A. T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
Q8.What's the MOQ?
A.1 set .(Only some low cost machines will be more than 1 set )
