China Origin Engraving Machining Center

China Origin Engraving Machining Center

US$20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1613
Condition
New
Certification
ISO, CE, FDA
CNC or Not
CNC
Voltage
380V
Transport Package
Plywood Pakcing
Trademark
CHANKE
Origin
China
HS Code
8456990000
Production Capacity
50sets /Month

Product Description

The CNC wooden door integrated machining center, also known as the door lock machine, is a versatile powerhouse designed for precision and efficiency in processing wooden doors, door frames, door locks, door lock steps, hinge holes, craft holes, and more. This advanced machinery executes a variety of technological processes through a single feeding and positioning action, ensuring seamless and accurate completion of tasks such as crafting door lock grooves and hinge holes. The machine boasts a vertical spindle, horizontal spindle, strip worktable, high-precision four-milling head, auxiliary loading and unloading device, and a row-type tool magazine among other mechanical components. These components collaborate seamlessly, delivering high machining accuracy. User-friendly and straightforward to operate, the equipment effortlessly handles tasks like processing wooden door rules, lock holes, lock grooves, hinge pages, paint holes, and chute grooves.
Feature
1. User-friendly operation: Basic training is sufficient for workers to get started, negating the need for professional programmers. The intuitive touch screen simplifies operations.
2. Specialized control system: Designed for door lock processing, the system offers a rich variety of door lock shapes and modular operation, accommodating diverse door processing needs.
3. Efficient keyhole processing: The high-power electric spindle processes side keyholes with impressive efficiency, leveraging gravity cutting for optimal results.
4. Enhanced productivity: The inclusion of an auxiliary loading and unloading device minimizes labor intensity while boosting production efficiency.
(3) Door locking machine :
Door making wood CNC router :

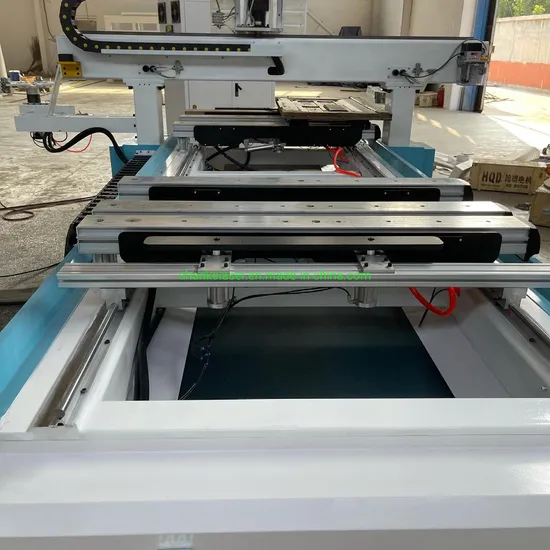

X-axis: 1300mm Y-axis: 2400mm Z-axis: 300mm Motor: 1000W Xinjie full servo motor with Xinjie series driver Machine size: 2200x3300x1700mm Voltage: AC 380V 50HZ Y-axis: HGW30 square rail. X-axis: HGW25 square rail liner. Z-axis: ball screw transmission XY-axis: M1.25-1:5 Gear box and Z-axis TBI-SFU2505 ball screw MPG Hand wheel 12kW GMT Brand water-cooled spindle for Carousel ATC function + HSK63F tool collector + 24000Rpm Manual tool change Automatic tool sensor Working table includes a positioning system with 12 cupules on the working table Delta B series 15kW inverter Carousel liner: 12 tools Horizontal spindle: 6kW HQD air-cooled spindle Machine photos :
After-sales Services
We provide a comprehensive 12-month warranty for the machine.
Consumable parts will be replaced free of charge during the warranty period.
Our engineers offer technical support and training on-site in your country if required.
Around-the-clock service: Our engineers are available 24/7 online via WhatsApp, WeChat, QQ, or phone.
Pre-Sale Service
1) Free sample cutting service:
For free sample processing/testing, send us your CAD file. We will perform the cutting at our factory, create a video to demonstrate the process and results, or send samples for you to check the quality.
2) Processing Solution Design:
At Jinan Chanke Mechanical Equipment Co., Ltd., we tailor unique solutions based on our customers' specific processing requirements. Our custom designs not only boost manufacturing efficiency but also enhance processing quality, delivering exceptional value to our clients.
3) Customized machine design:
We understand that each application is unique. That's why we offer machine modifications based on customer convenience and the need for high production efficiency, ensuring our machines perfectly fit your production demands.
After-Sale Service
1) We provide a comprehensive CNC machine package that includes a training video and an English user manual for installation, operation, maintenance, and troubleshooting. Our dedicated support team is available 24/7 via Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, and online chat to assist with any issues you might encounter during installation, operation, or adjustment. (Recommended)
2) We welcome you to visit our CNC machine factory for hands-on training. Our professional team offers direct and effective face-to-face instruction. Our facility is equipped with assembled equipment, various tools, and testing facilities. Training sessions typically last 3 to 5 days. (Recommended)
3) For a more personalized experience, we offer door-to-door instruction and training services at your location. We require assistance with visa formalities, prepaid travel expenses, and accommodation for our engineers during their visit. Occasionally, a translator might be necessary to ensure effective communication throughout the training period.
