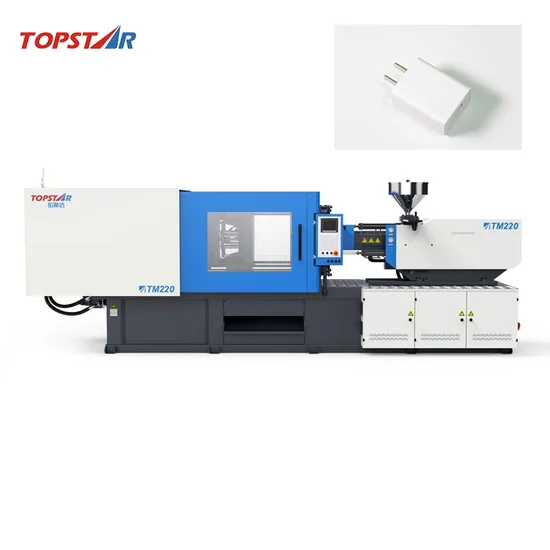

Topstar 170ton Plastic Injection Moulding Machine for PE/PP/ABS with CE

Product Description

Topstar 170ton Plastic Injection Moulding Machine for PE/PP/ABS with CE

Product Description:
The TM series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TM170
Screw Diamete	mm	40	45	50
Screw L/D Ratio	L/D	22.5	20.0	18.0
Screw Stroke	mm	200	200	200
Shot Volume	cm3	251	318	393
Shot Weight(ps)	g	229	289	357
	oz	8.1	10.2	12.6
Injection Pressure	kgf/cm3	2362	1866	1511
Injection Rate	cm3/s	123	156	193
Injection Rate	mm/s	98	98	98
Screw Speed	rpm	200
Nozzle Contact Force	t	6.2
Nozzle Stroke	mm	280
CLAMPING UNIT	UNITS	TM170
Clamping Force	t	170
Opening Stroke	mm	430
Platen size(H×V)	mm	680*680
Space Between Tie Bars(H×V)	mm	470*470
Mlould Thickness (Min)	mm	160
Mlould Thickness (Max)	mm	540
Max. Daylight	mm	970
Ejector Force	t	4.2
Ejector Stroke	mm	140
Locating Ring	mm	125
POWER/HEATING UNIT	UNITS	TM170
System Pressure	kgf/cm3	175
Pump Power	kw	18
Heating Power	kw	10.2
Number of Temp Control Zones	-	3+1
0THERS	UNITS	TM170
Machine Dimensions(LxWxH)	m	5.3*1.32*1.96
Oil Tank Capacity	L	200
Machine Weight	t	4.5
Platen Dimensions
Platen Dimensions

Note: The company reserves the right to modify the technical parameters without prior notice.
