Walking Tractor Push Corn Harvester, Maize Harvesting Machine

Product Description

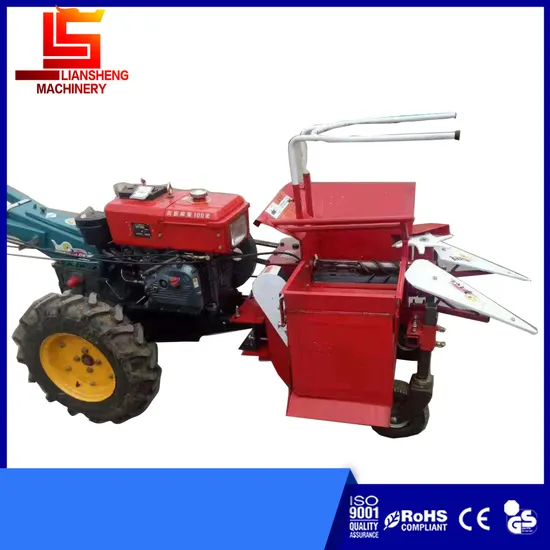

Walking Tractor Push corn harvester ,Maize Harvesting Machine
This machine can complete one row of corn harvesting and straw crushing at a time. Equipped with bucket when it is full can be automatically unloaded.
The height of stubble can be adjusted, the tensioning clutch works safely, and the turning radius is small.
It can harvest two acres of corn per hour and crush the straw at the same time.
1: This machine is compact and adaptable, and is widely used in small corn fields that cannot be passed by large corn harvesters such as hills and mountains.
2: Complete functions, picking corn, crushing straw and returning to the field, etc., almost the same function as the large-scale corn harvester.
3: It is easy to install and disassemble.
4: Flexible operation, adjustable stubble height and small turning radius.

Model	4YD-1A(walking tractor)	4YZ-1( gasoline engine)	4YZ-1( diesel engine)
Engine model	Walking tractor matched	190 gasoline engine	186/188/192 diesel engine
Power	10-15hp	8.2kw	6.3kw/7.5kw/8.3kw
Cutter shaft speed	3000r/min	3200r/min	3200r/min
Line space	500-700mm	500-700mm	500-700mm
Overall weight	110kg	200kg	240 kg
Rows	1	1	1
Dimension	1200*850*(1100-1300)mm	2100*970*1100mm	2100*970*1100mm
Efficiency	0.10-0.15(hM2h)	0.10-0.15(hM2/h)	0.10-0.15(hM2/h)
Stubble height	20-80mm	20-80mm	20-80mm

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
