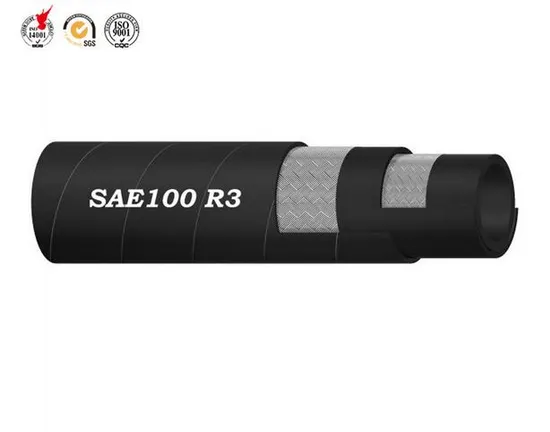

Textile Braided Flexible Hydraulic Hose SAE 100 R3

Product Description

Product Description
Main applications: Low-medium pressure lines,return lines
Continuous service temperature range:-40°F/+212°F (-40ºC/+100ºC)
Max operating temperature: (Intermittent service)250°F 121ºC
Recommended fluids: Mineral oils,vegetable and rape seed oils,glycol and polyglycol based oils,synthetic ester based oils,oils in aqueous emulsion,water.
Reinforcement : 1/ 2 high tensile steel wire braid
Tube:Oil resistant synthetic rubber
Cover:Environment resistant synthetic rubber
Product Parameters
SAE 100 R3 SAE J517 100RAT ISO 4079-1 R3

		Hose I.D		W.D	O.D	W.P		B.P		min B.R	Weight	unit length
Product number	DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres	adaptor
GR3-03-05	5	3/16"	4.8	*	12.7	10.5	1520	42	6500	75	0.16	50/100	M12*1.5
													G1/8
													U5/16
GR3-04-06	6	1/4"	6.4	*	14.3	8.7	1350	34.8	5300	75	0.19	50/100	M14*1.5
													G1/4
													U7/16
GR3-05-08	8	5/16"	7.9	*	17.5	8.4	1300	33.6	5200	100	0.26	50/100	M16*1.5
													U1/2
GR3-06-10	10	3/8"	9.5	*	19	7.8	1200	31.2	4840	100	0.28	50/100	M18*1.5
													G3/8
													U9/16
GR3-08-13	13	1/2"	12.7	*	23.8	7.0	1080	28	4340	125	0.40	50/100	M22*1.5
													G1/2
													U3/4
GR3-10-16	16	5/8"	15.9	*	27	6.1	945	24.4	3780	140	0.55	50/100	M27*1.5
													G5/8
													U7/8
GR3-12-19	19	3/4"	19	*	31.8	5.2	800	20.8	3220	150	0.69	50/100	M30*1.5
													G3/4
													U1 1/16
GR3-16-25	25	1"	25.4	*	38	3.9	600	15.5	2420	205	0.82	50	M39*2
													G1"
													U1"5/16
GR3-20-32	32	1"1/4	31.8	*	44.4	2.6	400	10.4	1610	250	1.00	20 to 40	M45*2
													G1"1/4
													U1"5/8

STANDARD: SAE 100 R3 SAE J517 100RAT ISO 4079-1 R3
TUBE: oil resistant synthetic rubber
REINFORCEMENT: two braid of high-tensile fiber
COVER: oil, abrarion & weather resistant synthetic rubber
TEMPERATURE RANGE: -40ºC /+121ºC ; -40 °F/+250 °F
APPLICATIONS: suitable for base hydraulic oil, mineral oil, canola oil and rapeseed oil, diol and polyethylene glycol based oil, synthetic lipid based oil, emulsified oil, water. not need to strip the cover
