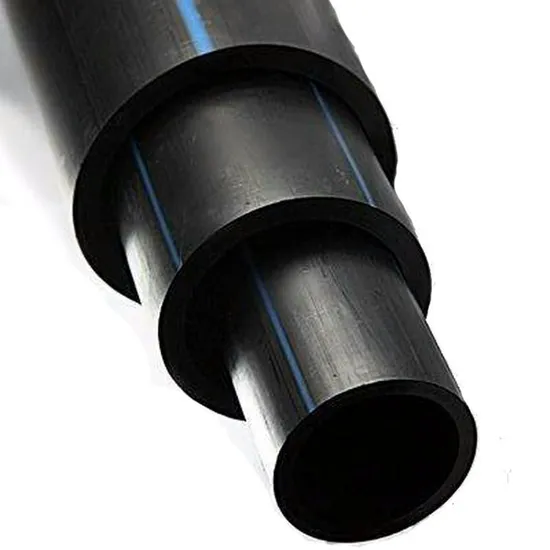

Durable and Premier DN16-1200mm Pn4-Pn20 SDR41-SDR9 PE 100 Water Supply Pipe or Tube for Many Occations of Supporting Water, Draining Water and Other Uses

Product Description

Product Description Our PE water supply pipe are crafted from polyethylene resin, enhanced with 2%-5% black masterbatch for superior performance. The cortex comprises 0353 or 2480 materials, also reinforced with 2% black masterbatch for added durability.
Storage: Ensure pipes are kept away from heat sources, and areas prone to oil and chemical pollution. Store on flat, well-ventilated ground, horizontally stacked no higher than 1.5 meters. For outdoor storage, cover the pipes to protect them from the elements.
Our product adheres to the stringent GB/T13663.2-2018 standard, ensuring the highest quality and reliability.
Transportation: Handle with care to avoid scratches, throwing, violent impacts, and exposure to oil and chemical pollutants.
Construction: When heating, the tube wall should be heated for approximately 9-10 seconds per millimeter of thickness. Cooling time should be three times the heating duration. The system can be commissioned only after a successful pressure test.
Product Parameters

PE 100 water supply pipe
Pressure Rating	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa
Outside Diameter (millimeter)	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
	Wall Thickness (millimeter)
16	-	-	-	-	-	-	-	2.3
20	-	-	-	-	-	-	2.3	2.3
25	-	-	-	-	-	2.3	2.3	3.0
32	-	-	-	-	2.3	2.4	3.0	3.6
40	-	-	-	2.3	2.4	3.0	3.7	4.5
50	-	-	2.3	2.4	3.0	3.7	4.6	5.6
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3
125	-	-	4.8	6.0	7.4	9.2	11.4	14
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-
1200	29.4	36.7	45.9	57.2	70.6	88.2	-	-

Note:
1. This series of pipes are primarily utilized in urban water supply engineering. The nominal pressure indicates the maximum allowable working pressure of the pipe for water conveyance at a temperature of 20ºC. This ensures optimal performance and reliability in all municipal water distribution networks.
2. The weight listed in the table above is calculated based on an average density of 0.95g/cm³. The outer diameter and wall thickness are determined as the nominal value plus half of thelimit deviation, ensuring consistent quality and durability.
Certifications Our commitment to excellence is demonstrated through our extensive certifications. We proudly hold ISO9001:2015 certification for quality management, ISO14001:2015 certification for environmental management, and ISO45001:2018 certification for occupational health and safety management. Moreover, we are honored to be a qualified member cooperation unit with the prestigious State Grid Corporation of China, with which we have secured a long-term supply contract. This underscores our dedication to quality, sustainability, and reliable partnership.
Production features 1 Stable connection at pipe joints.
The joint of the polyethylene pipe is connected by electrothermal melting, and the strength of the joint is not lower than the strength of the pipe body.
2 The pipe has better low temperature resistance and impact resistance.
The low temperature embrittlement temperature of polyethylene is low, and it can be used safely in the temperature range of minus 60ºC to 60ºC. In winter construction, good impact resistance will not cause pipe construction brittleness.
3 The pipe has excellent stress cracking resistance.
PE pipe has low notch sensitivity, high shear strength and excellent scratch resistance, which makes the pipe outstanding resistance to environmental stress cracking.
4 The pipe has excellent chemical corrosion resistance.
PE pipe can resist the corrosion of a variety of chemical media, will not be degraded by chemical reaction, rot, rust or electrochemical corrosion phenomenon, will not promote algae, bacteria or fungi growth.
5 The pipe has long service life and excellent aging resistance.
The pipe contains 2%-2.5% of uniformly distributed carbon black material, which guarantees that the pipe can be stored or used outdoors for 50 years. It also avoids damage that can be caused by ultraviolet radiation.
6 The pipe has excellent wear resistance.
The wear resistance of PE pipe and steel pipe is 4 times that of steel pipe. In the field of mud transportation, compared with steel pipes, PE pipes have better wear resistance, longer service life and economy.
7 The flexibility of the pipe is better.
The flexible nature of PE pipes helps to adjust the direction of the pipe at any time, thereby reducing the amount of pipe fittings and installation costs.
8 The inner surface of the pipe is smooth, and the water flow resistance is small.
The inner surface Manning coefficient of PE pipe is 0.009. The smooth and non-adhesive inner surface not only improves the conveying capacity of PE pipes, but also reduces pressure energy consumption.
9 The pipe is lighter and easy to handle.
PE pipes are lighter than traditional concrete pipes, galvanized pipes and steel pipes, which reduces the need for manpower and equipment during transportation and installation, and reduces the installation cost of the project.
10 The construction methods of pipes are diversified and the application fields are more extensive.
In addition to traditional excavation construction, PE pipes can also be constructed using a variety of new trenchless technologies such as pipe jacking, directional drilling, liner, split pipe, etc., so PE pipes have a wider range of applications.
FAQ
Q1: What about the sample?
A1: Our sample is usually well prepared and coated well, and delivered to customers by international courier(DHL, FedEx, TNT etc.) .
Q2: What about your payment terms?
A2: We usually use T/T payment term, but L/C is also fine. In the future, we will continue to support other payment terms.
Q3: How long is the expected delivery time of the product?
A3: We will complete orders below 10,000 meters within 15 working days, and the final arrival time will be affected by the shipping date.
Q4: Could you use our labels or printings instead of yours? (ODM)
A4: Yes, it depends on the requests of customer. But important data must be printed on the pipe such as outer diameter, wall thickness, PN data, SDR data, Production standard, Place of origin and date of production.
Q5: Could you offer special package services?
A5: Yes. We could offer the package on customer' s requests. It might have some extra fees.
Q6: What is the service life of your product?
A6: The service life should be 50 years.But you must follow our correct storage and construction precautions, otherwise the consequences need to be borne by yourself.
Q7: How could you guarantee the quality of you product?
A7: We could offer MSDS, COA, TDS files on customer' s requests and charge for additional charges. In addition, we'll take random samples and analyze them.
