Disc Type Waste LLDPE/ PE Retormolding Plastic Powder Miller Machine

Disc Type Waste LLDPE/ PE Retormolding Plastic Powder Miller Machine

US$5,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PNMF-basic
Object
Tool
Structure
Flat
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Chamber Diameter
500mm
Moving Knife Quantity
24 Pieces
Fixed Kinfe Quantity
12 Pieces
Motor Powe
37kw
Vibrating Sieve Power
0.75kw
Transport Package
Export Standard Packing
Specification
ISO9001: 2008 CE SGS
Trademark
WANROOETECH
Origin
Zhangjiagang
HS Code
84778000
Production Capacity
500 Sets/Year

Product Description

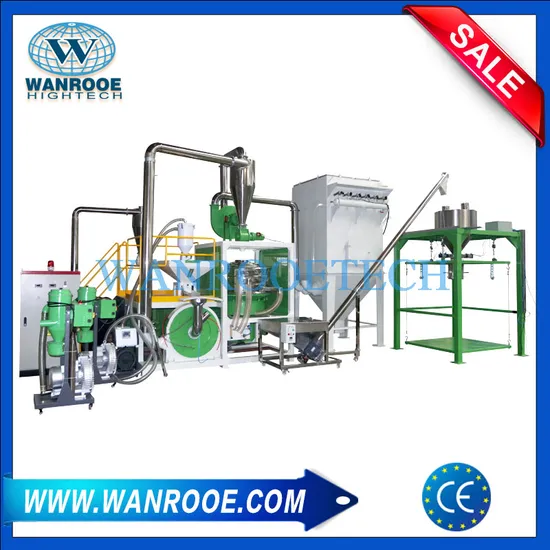

Disc Type Waste LLDPE/ PE Retormolding Plastic Powder Miller Machine
Applications:
One of the main fields of use for the PNMF plastic milling machine is the pulverization of PVC regrind in pipe and profile recycling. Working in line with a shredder and granulator to have a balanced and efficient system to handle in house production waste. Another application is the grinding of PE for Rotomolding applications, here the PM Pulverizer is used in the production process to create the powder needed in the process. In this process, a screening machine is necessary to ensure the right output size, distribution, and flow properties of the ground material.
General description:
The disc grinding machine pulverizer machine of the PNMF series is available with a disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact-resistant, and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments.

Technical Features:
1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging, and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Advantages:
Simple adjustment of cutting gap
Choice of discs or segments
Low drive power - High throughput
Innovative efficient design
Wide range of accessories
Easy temperature control
Specifications:
Model PNMF-300 PNMF-400 PNMF-500 PNMF-600 PNMF-800
Disc
Diameter(mm)
300mm 400mm 500mm 600mm 800mm
Dimension L*W*H(mm) 3700*1500*3700 3800*1600*3800 3900*1700*3900 4000*1800*4000 4300*1900*4300
Main Motor(kw) 11-15 22-30 30-37 45-55 75-90
Air Blower(kw) 3 4 5.5 5.5kw 7.5
Vibrating
Motor (kw)
0.55 0.55 0.75 1.1 1.1
Air Lock
Motor (kw)
0.75 0.75 0.75 0.75 0.75
Capacity
(kg/h)
30-50 50-120 120-200 200-350 400-600

Our factory
Customer Feedback:
Our Service 1. One-year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
