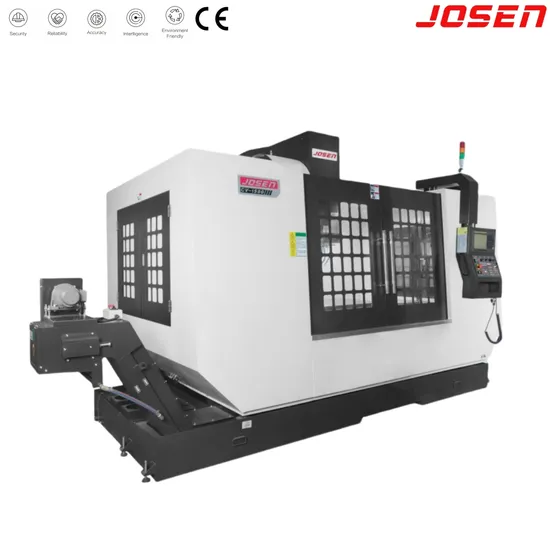

Axis Vertical Machine Center CNC Vertical Machine Center 5-Axis Vertical Machining Centerl CV-1580
| US$68,400.00-78,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CV-1580
Type
Tool Milling Machine
Object
Tool/Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001, ISO 14000
Condition
New
Spindle Inner Taper Bore
Bt50
Spindle Feed Rate
8000rpm
Tool Type
Knife Arm Type
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
2000*900*800mm
Trademark
Josen
Origin
Changzhou, Jiangsu, China
HS Code
8457101000
Production Capacity
3000pieces/Year
Packaging & Delivery
Package Size
535.00cm * 480.00cm * 335.00cm
Package Gross Weight
11000.000kg
Product Description
3 Axis Cnc Vertical Machining Center Precision Vertical Machine Center High-Speed Vertical Machining Center CV-1580 Product DescriptionBasic Info
| Main technical parameters | Unit | CV-1055F | CV-1370 | CV-1580 | CV-1890 |
| X-axis travel | mm | 1020 | 1320 | 1520 | 1800 |
| Y-axis travel | mm | 520 | 720 | 800 | 900 |
| Z-axis travel | mm | 550 | 650 | 700 | 800 |
| Distance from nose of spindle to table surface | mm | 145-695 | 170-820 | 155-855 | 200-1000 |
| Working table size (X*Y) | mm | 1120*520 | 1400*700 | 1650*800 | 2000*900 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*100 | 18*5*125 | 18*5*150 | 22*5*160 |
| Max. loading capacity of working table | KG | 500 | 1000 | 1400 | 2500 |
| Spindle motor (continuous/30 minutes) | kw | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
| Spindle speed | rpm | 10-10,000 | 10-8,000 | 10-8,000 | 10-8,000 |
| Spindle inner taper bore | BT40 | BT50 | BT50 | BT50 | |
| X/Y/Z axis motors | kw | 3/3/3 | 37683 | 3/3/3 | 3/3/3 |
| Rapid feed rate (X/Y/Z) | mm/min | 36000/36000/36000 | 24000/24000/24000 | 20000/20000/20000 | 20000/20000/20000 |
| Fastest cutting feed rate | mm/min | 1-10,000 | 1-10,000 | 1-10,000 | 1-10,000 |
| Tool magazine capacity (standard) | set | 30 | 0/24 | 0/24 | 0/24 |
| Tool magazine form | Disc type | Disc type | Disc type | Disc type | |
| Tie rod bolts form | MAS-P40-1(45°) | MAS-P50-1(45°) | MAS-P50-1(45°) | MAS-P50-1(45°) | |
| Maximum tool diameter of adjacent tools | Ø80 | Ø110 | Ø105 | Ø110 | |
| Max. tool diameter of empty adjacent tool | Ø150 | Ø200 | Ø200 | Ø200 | |
| Maximum tool length | mm | 300 | 300 | 350 | 350 |
| Maximum tool weight | kg | 8 | 15 | 15 | 15 |
| Positioning accuracy (full stroke) | mm | ±0.005 | ±0.005 | ±0.01 | ±0.01 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 | ±0.003 | ±0.005 | ±0.005 |
| Controller | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | |
| Water tank capacity | liter | 250(Side row) | 350 | 350 | 350 |
| Pneumatic pressure requirements | kg/cm2 | 6 | 6 | 6 | 6 |
| Power Specifications | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | |
| Electricity demand | KVA | 30 | 30 | 50 | 50 |
| Floor space (L*W) | mm | 3450*3070 (Side row) | 4800*3020 (Front track) | 5350*4800 (including pedal hydraulic station)(Front Chip removal machine) | 6000*5150 (including pedal hydraulic station)(Front Chip removal machine) |
| Machine height (maximum) | mm | 2840 | 3030 | 3350 | 3465 |
| Machine weight | T | 6 | 9 | 11 | 16 |
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller | 10 | Chip pan and water tank |
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection system |
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions |
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Work light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
9 | Portable chip blowing air gun | 18 | 24-blade arm type tool magazine |
Product Specification
| Description / Machine Model | Unit | CV-1580 |
| Itinerary | ||
| X-axis travel | mm | 1520 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 700 |
| Distance from nose of spindle to table surface | mm | 155-855 |
| Workbench | ||
| Working table size (X*Y) | mm | 1650*800 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*125 |
| Max. loading capacity of working table | KG | 1400 |
| Spindle | ||
| Spindle motor (continuous/30 minutes) | kw | 15/18.5 |
| Spindle speed | rpm | 10-8000 |
| Spindle inner taper bore | BT50 | |
| Three axis | ||
| X/Y/Z axis motors | kw | 3/3/3 |
| Feed rate | ||
| Rapid feed rate (X/Y/Z) | mm/min | 20000/20000/20000 |
| Fastest cutting feed rate | mm/min | 1-10,000 |
| Oil pressure system | ||
| Water tank capacity | liter | 350 |
| Pneumatic pressure requirements | kg/cm2 | 6 |
| Electricity | ||
| Power Specifications | AC380±10%,3 phase,60Hz/50Hz | |
| Electricity demand | KVA | 30 |
| Other | ||
| Machine weight | T | 9 |
