Custom High Quality Newly Design Food Grade Reusable Customized PLA Paper Cup Lid Thermoforming Machine

Custom High Quality Newly Design Food Grade Reusable Customized PLA Paper Cup Lid Thermoforming Machine

US$30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MODEL-500
Raw Material
PET
Shaping Mode
Die Molding
Application
Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity
Driven Type
Servo and Arm Bending
Computerized
Computerized
Certification
QS
After-sales Service
All Time
Suitable Sheet
PVC, PS, Pet
Maximum Width
520mm
Maximum Depth
80mm
Speed
15-30min/Cycles
Transport Package
Wooden Packaging
Specification
height: 80mm
Trademark
Mingdu
Origin
China
HS Code
8477409000
Production Capacity
5sets/Month

Product Description

Custom High Quality Newly Design Food Grade Reusable Customized Cpla/PLA Paper Cup Lid Thermoforming MACHINE

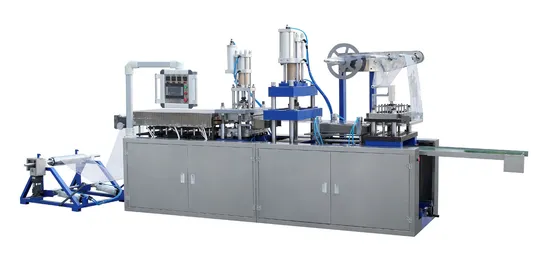

Model-500 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC plastic products.
technical parameter:
Model MODEL-500
Suitable Sheet PVC, PS, PET
Largest Forming Area 500mm*350mm
Maximum Width 520mm
Maximum Depth 80mm
Power 20Kw
Air Pressure 0.6-0.8Mpa
Production rate 15-30die/min
Depth of Sheet Material PS/PVC: 0.10mm-0.80mm
PET: 0.10mm-0.60mm
Weight 2800Kgs
Overall Dimension 3200mm*1100mm*1700mm(L*W*H)

Samples:
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
3. Quotation: valid for 30days.
Machine Feature:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
According to user requirements design mold;
Shipment:
Contact: Miss Pearl
