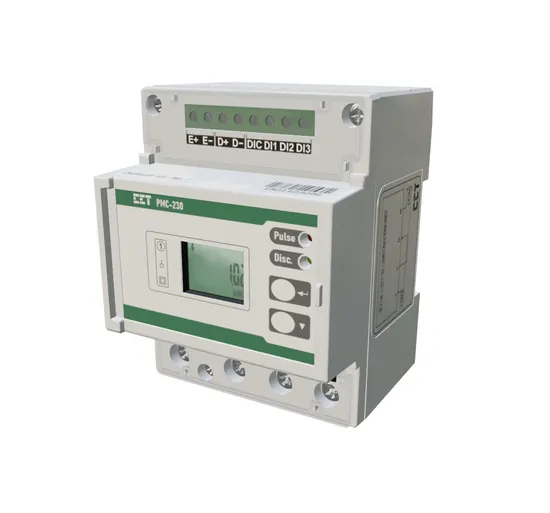

PMC-230 DIN Rail Class 0.5 Single-Phase 63A Direct Input Multifunction Power Meter

Product Description

CET PMC-230 35mm DIN Rail Single Phase LCD Self-powered 63A Direct Connect Input Internal 100A Disconnect Relay Multifunction Electric MeterThe PMC-230 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN-Rail mount, compact construction, 63A direct input with an internal UC3 Disconnect Relay. The PMC-230 also complies with the IEC 62053-21 Class 0.5 kWh Accuracy Standard. The PMC-230 provides 4MB Log Memory for Data Recording, 3xDI for Status Monitoring or Pulse Counting, 1xLED and 1xSS Pulse Output for energy pulsing. Further, the standard RS-485 port supporting Modbus RTU protocol with password protection allows the PMC-230 to become a vital component of an intelligent, multifunction monitoring solution for any secured Energy Management Systems.

Typical Application

• DIN-Rail mount energy metering • Industrial, Commercial and Utility Substation Metering• Building, Factory and Process Automation• Sub-metering and Cost Allocation

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
