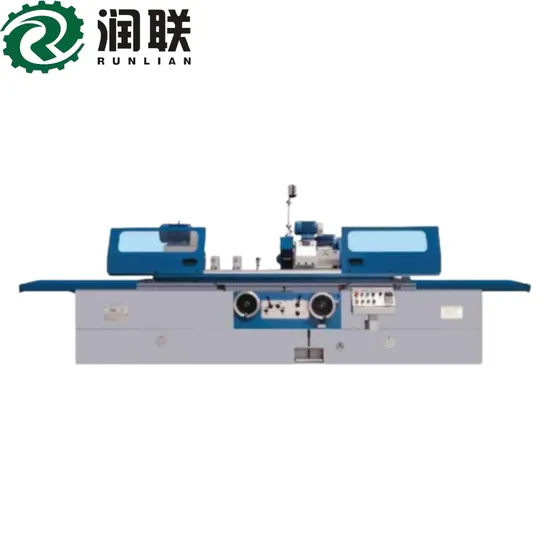

M1432b Universal Surface Grinding Machine

Product Description

Product Description
M1432B Universal Surface Grinding Machine
Cylindrical Grinding machines produce high tolerance parts with superior surface finishes. Excellent repeatability is achievable by our use of a grinding class cross feed screw and nut. Available in a variety of configurations manual, automatic and PLC controlled our cylindrical grinder will be the perfect fit for your grinding application.
Feature
1- The left and right guide rails adopt a P-V structure, which is scraped by a high precision manual so that the whole system products have high precision and high stability.
2- The front and rear feed guide rail of the grinding wheel can choose roller and wire rail structures.
3- Classic control mechanism, simple, safe, and reliable.
4- Universal work head can be adjusted at any angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.
Detailed Photos
Product Parameters

Description	Unit	M1432B
General Capacity
Max. length ground (O.D)	mm	1000, 1500, 2000, 3000
Center height	mm	180
Dia.Ground (O.D)	mm	8-320
Dia.Ground (I.D)	mm	30-100
Max. length ground (I.D)	mm	125
Max. weight of workpiece	kg	150
Work-head
Swiveling angle	°	+90°
Center taper (MT)	MT	4
Spindle speed/Stepless	r/min	50HZ 26-260
Wheelhead
Max. dimension of the wheel (OD*W*ID)	mm	400x50x203(1000,1500) 500x50x203(2000,3000)
Wheel peripheral velocity	m/s	35
Hand-feed per.rev	mm	rough: 2
		fine: 0.5
Hand-feed per.gra	mm	rough:0.01
		fine:0.0025
Internal grinding device
Spindle speed	r/min	10000
Dimension of wheel	mm	max. 50x25x13
		min. 17x20x6
Table
Max. the swiveling angle of the table (Clockwise)	°	3°
Max. the swiveling angle of the table ( Anticlockwise)	°	7°(1000)6°(1500)5°(2000)3°(3000)
Longitudinal speed range of table	m/min	0.1-4
Tailstock
Center tape (MT)	(MT)	4
Quill travel	mm	30
Motor
Wheelhead motor power	kw	5.5(1000,1500) 7.5(2000,3000)
Internal grinding	kw	1.1
Workhead motor power	kw	1.5
Machining accuracy
Roundness	μm	3(1000,1500,) 5(2000,3000)
Cylindricity	μm	8(1000,1500) 10(2000,3000)
Roughness	μm	Ra0.2 (1000,1500) Ra0.32(2000,3000)
Machine
Gross weight	t	4.6(1000) 5.1(1500) 5.7(2000) 7.1(3000)
Packing dimension	cm	326x190x205 (1000)
		426x190x205 (1500)
		530x190x205 (2000)
		730x190x205(3000)
