Bamboo Raft Double Shaft Shredder

Product Description

Bamboo Raft Double Shaft Shredder
Double shaft shredder machine is through the cut, tear and squeezing, reaching to decrease the size of raw material.
Wood/bamboo raft shredder machine also can be called wood pallet crusher, designed for pieces of aluminum material, suitable for all kinds of large volume, hard broken press block or not press block of aluminum material, has the advantages of uniform discharge, size control. Mainly used for shredding, crushing, crushing waste aluminum and other aluminum. According to the size of the material the client can choose aluminum shredding machine and four axis aluminum shredding machine.
Wood/bamboo raft shredder machine is widely used for waste plastics, waste rubber, timber and other waste materials.
High production efficiency, mechanized feeding way, high automation degree, greatly reduces the labor intensity of workers, improve the working environment.

The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

Technical parameters:

	Model	Power(kw)	Capacity(kg/h)	Quatity of blades	Inlet size(mm)
Blades diameters Φ200*20	FM-500	7.5-11	400-600	20	800*600
	FM-600	7.5-11	500-800	22	800*600
	FM-800	11*2	600-1000	30	1000*800
	FM-100	15*2	700-1200	30	1200*800
Blades diameters Φ200*20	FM-800	15*2	800-1200	24	800*1200
	FM-1000	22*2	1000-1500	30	1000*1500
	FM-1200	22*2	1500-2000	36	1500*1800
	FM-1500	30*2	2000-2500	48	1500*2000
Blades diameters Φ400*40	FM-800	15*2	1000-1500	18	800*1200
	FM-1000	30*2	1500-2000	22	1000*1500
	FM-1200	45*2	2000-3000	28	1500*2000
	FM-1500	55*2	2500-3500	36	1500*2000

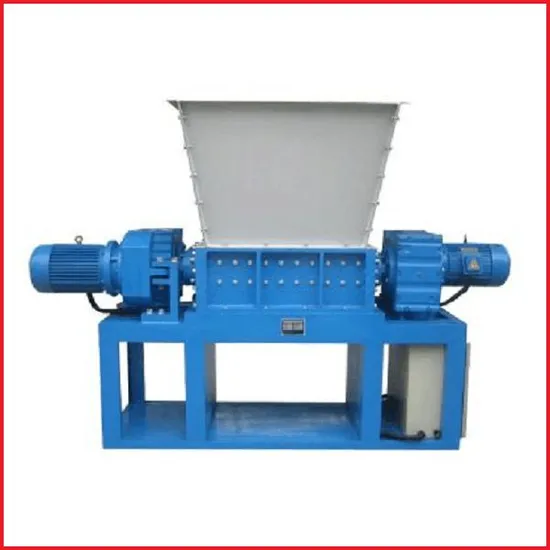

Photo:
