Sustainable XLPE Insulated Power Cable for Eco Friendly Energy Solutions
| US$1.99 | 500 Meters (MOQ) |
Basic Info.
Model NO.
YJY YJV WDZ-YJY WDZ-YJV
Current
DC & AC
Insulation Material
XLPE
Sheath Material
PE
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE, RoHS
Model
Yjy Yjv Wdz-Yjy Wdz-Yjv
Brand
Xinxin
Color
White/Black
MOQ
500m
Conductor
Copper
Insulation
XLPE
Sheath
PE
Transport Package
Wooden Steel Drum
Specification
1.1*1.1*0.98m
Trademark
Shanghai Shenghua Cable Group
Origin
Shanghai, China
HS Code
8544492100
Production Capacity
100000
Product Description

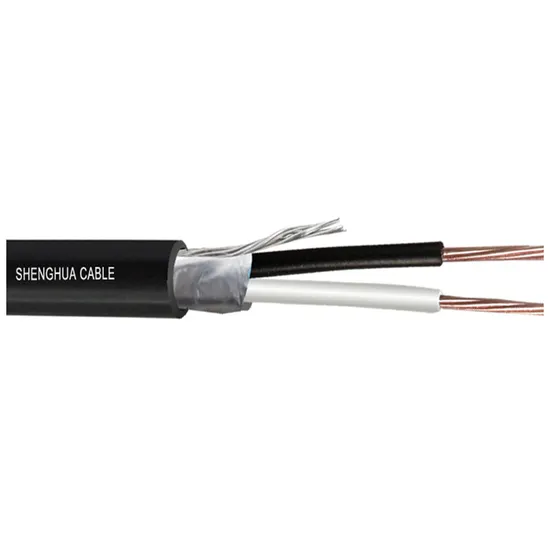

Product Name:YJY XLPE insulation LSOH Sheathed Flame retardant Power Cable
Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
| Product Name | YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable |
| Model/Standard | CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA |
| Conductor Material | Circular stranded copper conductor, conforms to IEC 60228 class 2 |
| Insulation Material | XLPE/A |
| Inner Covering | LSOH |
| Sheath Material | LSOH, black |
| Insulation Color | As per standards or customer requirement |
| Rated Voltage | 0.6 kV |
| Max. Conductor Temperature | Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C |
| Min. Ambient Temperature | Cable should be preheated if ambient temperature is below 0°C |
| Min. Bending Radius | Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5% |
