Powder Mixing Machine Dry Powder Mixer Corn Spice Mixing Equipment

Product Description

Product Description

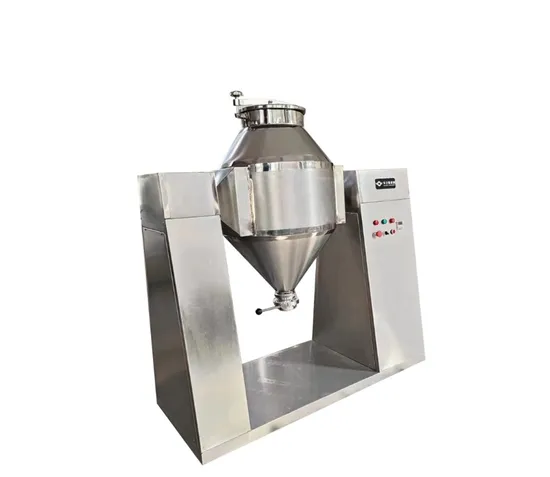

Dual motion mixer
Adopting advanced dual motion superposition mixing technology, two major functions of gravity diffusion mixing and forced shear mixing are achieved on one device. It can achieve macroscopic uniformity - that is, allowing the powder to roll up and down, and diffuse and mix evenly through left and right convection; It can also repeatedly perform multi-level and multi-directional interlacing and shearing between particles at the microscopic level of the powder, achieving fine and forced mixing. So the mixing uniformity can achieve the ideal state of macroscopic uniformity and microscopic ultrafine uniformity.
Technical Parameters

Model	Volume(L)	Chargeable Volume(L)	Barrel Speed(r/min)	Bleed Speed(r/min)	Motor Power(KW)	Overall Size L*W*H(mm)	Total Weight(kg)
RGH-50S	50	38	25	50	1.1	1550*700*1100	500
RGH-200S	200	150	21	42	2.2	2000*850*1450	700
RGH-800S	800	600	14	28	5.5	2600*1200*1850	2000
RGH-1000S	1000	800	11	22	7.5	2700*1250*1850	2500
RGH-1500S	1500	1200	8	16	15	2950*1770*2200	2700
RGH-2000S	2000	1600	6	12	18.5	3300*1870*2500	3000
RGH-3000S	3000	2400	6	12	22	3900*2000*2890	3700

Structural composition
(1) The machine is driven by an electric motor, the cylinder is driven by a sprocket, and the mixing blades are driven by a triangular belt. The structure is simple, the transmission is reliable, and maintenance is convenient;
(2) The double cone support bearing of this machine adopts mechanical sealing for dust isolation treatment, which has a reliable sealing effect. The powder material will not leak and will not be damaged due to rapid wear of the bearing caused by material entering the bearing;
(3) The feed inlet of the double cone cylinder adopts a quick opening rotary valve, and the discharge outlet adopts a large diameter 90 ° rotary valve, which is particularly convenient to use.
The working process of the machine is: several materials to be mixed are put into the double cone body through vacuum transmission or manual feeding, the cylinder cover is installed, the equipment is opened, the double cone cylinder and the mixing blade rotate at the same time, the rotating double cone cylinder causes the materials in the cylinder to roll and mix disorderly (forced mixing structure: the high-speed rotating mixing blade breaks up the agglomerated materials), so that the materials can be mixed quickly in the cylinder body. The working process of the W-type double cone mixer has no dead corners or sedimentation, which can quickly achieve a uniform and consistent effect of mixed materials.
Application area
Suitable for industries such as pharmaceuticals, food, chemicals, powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, etc.
