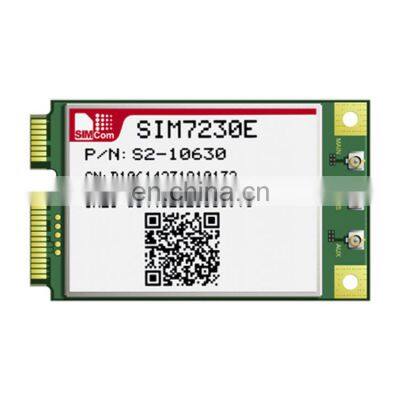

SIMCOM SIM7230E 4G LTE Cellular Module Evaluation Development Board SIM7230E PCIe

Product Description

Product Description
DescriptionSIMCom presents an ultra compact and reliable wireless module SIM7230E which is based on Qualcomm MDM9225 multiplemode LTE platform. SIM7230E is a complete multi-band LTE/ HSPA+/ HSPA/ UMTS/ EGDE/ GPRS/ GSM/ GNSS PCIE module designed with very powerfulprocessors integrating application core:ARMv7 Cortex? A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex- M3 core, allowing customer to benefit from small dimensions and cost-effective product solutions.Featuring an industry-standard PCI Express Mini Card standard with a USB 2.0 interface, the SIM7230E delivers GSM/ GPRS/ EDGE/ WCDMA/ LTE-FDD performance for Data Transmission with low power consumption in high-speed Download and upload.General features-Five-Band LTE-FDD 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7) MHz-Tri-Band UMTS/HSDPA/HSPA+ 900(B8)/1800(B3)/2100(B1) MHz Dual-Band GSM/GPRS/EDGE 900/1800 MHz-GPRS multi-slot class 12-EDGE multi-slot class 12-Output powerUMTS 900/2100: 0.25WGSM900: 2WDCS1800: 1W-Control Via AT Commands or Gobi API-Supply voltage range: 3.3V-Operation temperature: -40℃ to +80℃-Dimension: 51*30*4.55mm-Weight: TBD-LTE FDD/Rel-9 Cat4/Rel-10 Cat4-UTMS,-HSPA+ DC-HSPA+,Rel-10 HSPA+ including DCHSPA+MIMO and DCHSUPA-GSM GSM R99,GPRS,EDGE- GNSS gpsOne Gen 8B;standalone;assisted,XTRA;Specifications for Data transfer•LTE- Uplink up to 50Mbps,- Downlink up to 150Mbps•HSPA+- Uplink up to 11 Mbps,- Downlink up to 42 Mbps•UMTS- Uplink/Downlink up to 384Kbps•EDGE- Uplink/Downlink up to 236Kbps•GPRS- Uplink/Downlink up to 85.6Kbps•CSDOther features-USB Driver for Microsoft Windows 2000/XP/Vista-USB Driver for Win7/Win8-USB Driver for Windows CE/Mobile-USB Driver for Linux 2.6/Android-USB Driver for MAC-RIL supporting for Android/Windows CE/Mobile-Automatic installation-Linux API SDK-Firmware update via USB-TCP/IP/IPV4/V6 Multi-PDP,MT PDP-FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS-eCall Ready-Jamming detection support-Gobi SDK to the Win7/Win8/Linux-Source code of the PC manager of the device for referenceInterfaces-PCI Express Mini Card-USB 2.0Certifications-CE(TBD)-ROHS(TBD)-REACH(TBD)-GCF(TBD)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
