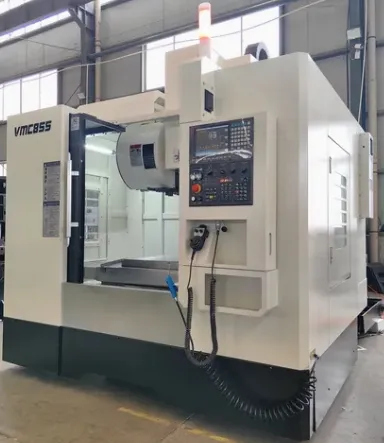

Model | Specification | Photo |
JT-VMC855 | Control System | | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT |
Feed Motor | NM | 18/18/22 |
Table Size | mm | 1000*550 |
Maximum Allowable Load | kg | 800 |
T-Slot Size | Mm/piece | 5-18*100 |
Maximum X-Axis Travel | mm | 800 |
Maximum Y-Axis Travel | mm | 550 |
Maximum Z-Axis Travel | mm | 550 |
Distance from Spindle Nose to Table Surface | mm | 120-670 |
Taper (7:24) | | BT 40 φ150 |
Spindle Speed Range | r/min | 8000 |
Spindle Motor Power | kw | 7.5/11 |
X/Y/Z Axis Rapid Feedrate | m/min | 36/36/24 |
X/Y/Z Axis Ball Screw | mm | ∅4016 |
Feedrate | mm/min | 1-8000 |
Tool Magazine Type | | Belt type |
Tool Magazine Capacity | pieces | 24 |
Tool Change Time (Tool-to-Tool) | s | 2.5 |
Pull Force | KN | 8 |
Tool Holder Model | | MAS403 BT40 |
Pull Stud Model | | MAS403 BT40 |
Maximum Tool Diameter (Full/Empty) | mm | 80/120 |
Maximum Tool Length | mm | 300 |
Maximum Tool Weight | kg | 8 |
X/Y/Z Axis Positioning Accuracy | mm | ±0.005/300 JIS |
X/Y/Z Axis Repeatability | mm | ±0.003/300 JIS |
Machine Dimensions (L×W×H) | mm | 2700*2400*2400 |
Machine Weight | kg | 5600 |
Main Components | CNC System | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT | | China |
Servo Drive | System Compatible | | China |
Three-Axis Ball Screw | 4016 | HIWIN | Taiwan |
Three-Axis Linear Guide (Roller) | RGH45 | HIWIN | Taiwan |
Tool Magazine | BT40 | Desu | Taiwan |
Belt-Type Spindle (with Ring Spray) | BT40 | Aibeco/Taida/DanQuan | China |
Pull Rod Cylinder | 4.5T | DanQuan/Haocheng | Taiwan |
Main Pneumatic Components | n/a | AIRTAC | Taiwan |
Automatic Lubrication System | n/a | Baoyu | China |
Heat Exchanger | n/a | Wengheng | Shanghai |
Work Light | M9-600/16W | OEN | Guangdong |
Alarm Light | 5i-I2-A3-BBF-T | OEN | Guangdong |
Three-Axis Telescopic Covers | n/a | Haidong | China |
Cooling Pump | n/a | Deyang | China |
Main Electrical Components | n/a | Delixi | China |
Centralized Coolant Filter | 30KG | Quanguan | China |
Chip Conveyor | Chain Plate Type + Chip Cart | Matched with External Sheet Metal | China |
Standard Configuration | High-Precision HT300 Castings | Network Transmission Port or R232 Interface |
Spindle Air Curtain | Drawer-Type Chip Conveyor |
High-Stability Tool Magazine | Air Blowing System (Cooling or Cutting) |
Luxury Explosion-Proof LED Work Light | Automatic Centralized Lubrication System (with Alarm Function) |
Spindle Taper Cleaning Air | Luxury Work Alarm Indicator |
High-Performance Servo Motor | Filter Tank System |
Portable Control Handwheel | High-Pressure Water Pump |
Leveling Bolts and Foundation Pads | Preloaded Nut for Three-Axis Screw |
Optional Configuration | Fourth Axis | Rotary Table TJR255, Fourth-Axis Drive Motor, Hydraulic Station |
Tailstock | Disc-Type Tailstock + Bridge Plate + L-Shaped Plate |
Spindle Oil Cooler | |
Electrical Components | Siemens |
Chip Conveyor with Material Box | |
