CNC Fiber Laser Cutter Equipment 1-6kw for Stainless Steel Metal with CE

CNC Fiber Laser Cutter Equipment 1-6kw for Stainless Steel Metal with CE

US$15,000.00
1-2 Pieces
US$13,500.00
3+ Pieces

Basic Info.

Model NO.
FY-3015
Application
Home Appliance, Petroleum Machinery Manufacturing, Food Machinery, Automotive Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Solid Laser
Transport Package
Three-Layer Aluminum Plastic Film Packaging
Specification
4550*2300*2000mm
Trademark
Farin
Origin
China
HS Code
8456110090
Production Capacity
50000 Pieces/Year

Packaging & Delivery

Package Size
4550.00cm * 2000.00cm * 2300.00cm
Package Gross Weight
2700.000kg

Product Description

Product Description

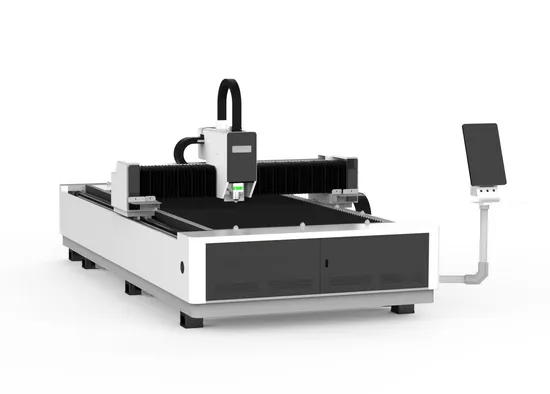

The single-platform fiber laser cutting machine has fast speed, high precision and good quality. The surface of the cut metal sheet is smooth and flat, and it can be processed flexibly. It can design any complex cutting pattern without molds, which can effectively reduce the processing cost. No damage to the surface, environmental protection and no pollution.
Detailed Photos

Raytool auto-focus laser cutting head
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Collimating lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Plate Welding Heavy Work Bed
Annealed And Heat Treated
The bed adopts high-strength pipe welded bed with sufficient weight. After high temperature quenching treatment, it can withstand high pressure and high temperature.
After strict quality inspection, it can ensure that the bed is stable and not deformed for at least 20 years.
Raycus laser source
Increases the maximum cutting thickness - comparable to traditional processing industries
Oxygen cutting carbon steel bright surface thickness increased - faster, smaller taper
The speed of stainless steel medium and thin plates is increased - smaller air pressure, faster speed
The speed of thin steel plates is increased - by excluding oxygen and replacing it with nitrogen, the speed is increased by more than half.
Product Parameters
Model FY-3015 Metal plate fiber laser cutting machine
Rotary Attachment For sheet cutting
Control System Cypcut
Working Area 3000*1500mm
Power Consumption ≤12KW
Laser Wave Length 1080nm
Working Voltage 380V, 50HZ/60HZ
Working Table Sawtooth
Auxiliary Gas oxygen,nitrogen,air
Maximum Idle Running Speed 1400mm/s
Working life of fiber module More than 100000 hours
Fiber laser cutting head Raytools
Liner guider system HIWIN/PMI made in Taiwan
Transmit system Dual Rack & Pinion type
Warranty time Whole machine for 24 months
Delivery time 30 days
Gross weight 3000kg
Driver system Janpan Yaskawa/FUJI servo motor
Working life of fiber module More than 100000 hours

After Sales Service

After-sales service:
1. Warranty.
--Farin Laser provides a 3-year free warranty and provides customers with timely solutions.
2. Follow up.
--Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving.
3. Online services.
-Farin Laser will respond to any questions from customers within 1 hour
