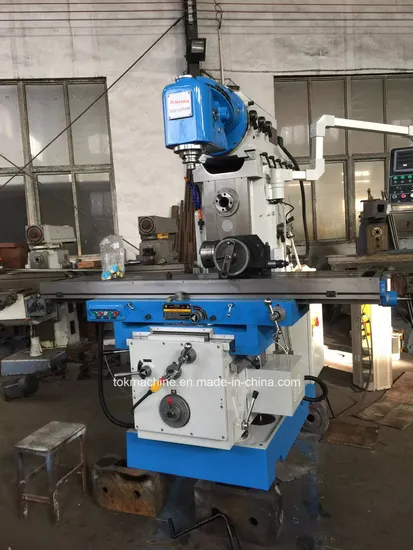

Tokmc Brands Table Size 2000X360 mm Milling Machine
| US$11,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TUM1490A
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Travel (mm)
2000X360mm
Spindle Speeds
50-1520 Rpm
Voltage
380V 415V 220V 600V
Motor
5.5 Kw
Three Axes Travel
Auto Gear Transmission
Product Name
Universal Swivel Head Milling Machine
Face Milling Cutter
320mm
Milling Head
360 Degree
Spindle Taper
ISO50
Digital Readout Three Axes
Sino Brand
Function
Milling Machine
Column Travel
Forward and Back
Worktable Swivel
45 Degree
Z Axis Travel
500mm
T-Slot
3-18-80 mm
Transport Package
2300X2700X2300mm
Specification
4100 kgs
Trademark
tokmc
Origin
Shandong
HS Code
84595900
Production Capacity
100 Sets/Year
Product Description
chinese milling machine TUM1490A| Model | TUM1490A |
| Spindle Taper | 7:24 ISO 50 V /H |
| Distance from Spindle to Column surface | 200-1000mm vertical milling head |
| Distance from Spindle Nose to Table Surface | 210-700mm vertical milling head |
| Max.Distance from Spindle Center to Table Surface(H) | 0~500 mm horizontal |
| Distance from Spindle Center to Table Surface | 280-1160mm vertical head |
| Spindle Speed Range | 50-1520 rpm V 60-1850 r.p.m H |
| Table Size | 2000×360mm |
| Worktable Swivel Angle | ±45° |
| Table Travel | 1620mm |
| Cross | 400mm |
| Vertical | 500mm |
| X,Y axis Feeding | 22.4-560mm/min 8steps |
| Z axis Feeding | 11.2-280mm/min 8steps |
| T-slots of Table | 3 |
| Width | 18mm |
| Distance | 80mm |
| Main Motor | 5.5kw/7.5 kw |
| Feeding Motor | 1.1kw |
| Coolant Pump Motor | 40w |
| Overall Dimensions | 2300×2700×2300mm |
| Net Weight | 4100kg |
