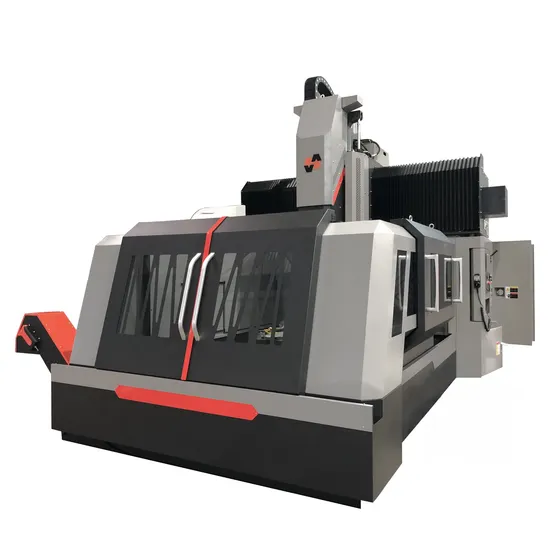

Precision Vertical Gantry Machining Center Tb-Vp1612 CNC Milling Machines with Integrated Casting Siemens Fanuc System
| US$110,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TB-VP1612
Structure
Gantry
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE
Condition
New
Worktable Size(L×w)(mm)
1000X1600
Max. X Axis Travel(mm)
1600
Max. Y Axis Travel(mm)
1300 (Tool Change 1450)
Max. Z Axis Travel(mm)
800
Gantry Width(mm)
1300
Gantry Height(mm)
1060
X Axis Guide Rail Cover Bracket Length(M
470
Transport Package
Wooden Packing
Specification
4600*2720*3320
Origin
China
Production Capacity
100
Product Description
| ITEM | TB-VP1612 | |
| WORKTABLE SIZE(L×W)(MM) | 1000X1600 | |
| MAX. X AXIS TRAVEL(MM) | 1600 | |
| MAX. Y AXIS TRAVEL(MM) | 1300 (TOOL CHANGE 1450) | |
| MAX. Z AXIS TRAVEL(MM) | 800 | |
| GANTRY WIDTH(MM) | 1300 | |
| GANTRY HEIGHT(MM) | 1060 | |
| RANGE OF SPINDLE NOSE TO WORKTABLE(MM) | DIRECT | 150~950(BT40-150) |
| BELT(OPTION) | 115~915(BT50-155) | |
| WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 7-22X140 | |
| SPINDLE(MODEL /DIAMETER) | DIRECT | BT40/∅150 |
| BELT(OPTION) | BT50/∅155 | |
| SPINDLE DRIVEN | DIRECT | 12000r/min |
| BELT(OPTION) | 8000r/min | |
| X.Y.Z Axis Rapid Speed (mm/min) | 15000/15000/15000 | |
| X.Y.Z Axis Speed (mm/min) | 1-10000/1-10000/1-10000 | |
| X/Y/Z AXIS BALL SCREW | X:5010,Y:5010,Z:5010 | |
| X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X:ROLLER GUIDE 45/6 Y:ROLLER GUIDE 45/4 Z:ROLLER GUIDE 45/6 | |
| X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | |
| RECOMMNED SPINDLE MOTOR POWER(KW) | DIRECT | 11KW |
| BELT(OPTION) | 15~18.5KW | |
| RECOMMEND X/Y/Z AXIS MOTOR(NM) | ≥36,30,30 (BRAKE) | |
| X AXIS GUIDE RAIL COVER BRACKET LENGTH(MM) | 470 | |
| FRAME DIMENSION(MM) | 4600X2720X3320 | |
| MAX. LOADING OF WORKTABLE(KG) | 2000 | |
| FRAME WEIGHT(KG) | 10600 | |
FAQ
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-40 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
