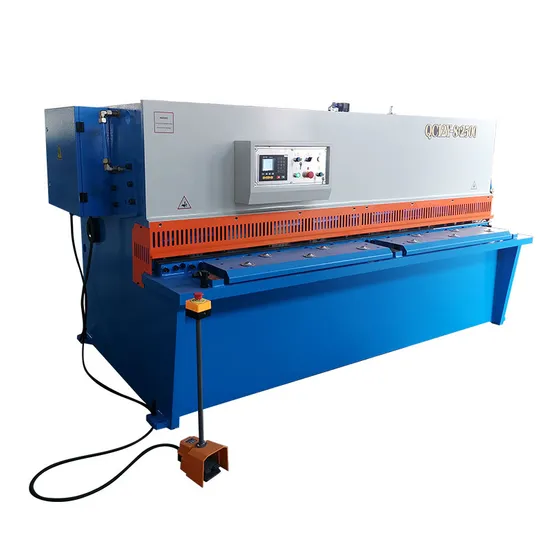

metal sheet processing QC12Y-8x2500 hydraulic shearing machine

Product Description

Product Description Hydraulic plate shearing machine QC12Y-8x2500:
The whole structure of Shearing machine:
-Totally European design, streamlined looking.
-Remove rust with sand-blast and coated with anti-rust paint.
-Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
1. Hydraulic system
-Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from -Rexroth,Germany.
-All pipes, flange and joint with vibrations proof and leakage proof design and setting.
-All seals in cylinder is Volqua from Japan, the most famous brand,good quality and high performance.
-Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
-The hydraulic system is made in compliance with current regulations.
2. Electrical system
-Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
-Front Side Covers with safety switches, Back light safety guards, Foot pedal conforming to CE regulation.
3. Blade Adjust and Cutting Precision
-Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
-Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
-The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
4. E21S CNC control system
-Backgauge control
-Control for AC motors, frequency inverter
-Intelligent positioning -Double programmable digital output
-Stock counter
-Program memory of up to 40 programs, upto 25 programs per program
-One side positioning
-Retract function
-One key backup/restore of parameters
-mm/inch
-Chinese/English

QC12Y-8x2500	Unit	Value
Shearing thickness	mm	8
Shearing width	mm	2500
Shearing angle		1°30'
Number of stroke	Min-1	14
Backgauge range	mm	20-600
Motor power	KW	7.5
Overall dimension	mm	3900*1750*1800
Weight	Kg	6500

Detailed Images
Company Profile
FAQ Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
