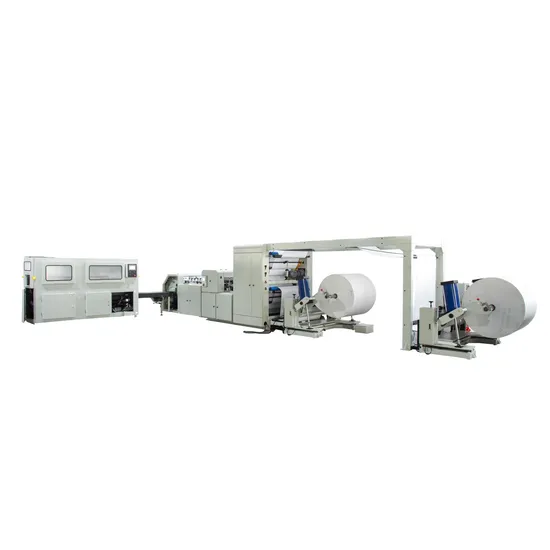

Automatic A4 Copy Paper Production Line Roll to Sheet Cutter Paper Making Machine A2 A3 A4 Paper Roll to Sheet Cross Cutting Machine with Wrapping Machine

Product Description

Automatic A4 Copy Paper Production Line Roll to Sheet Cutter Paper Making Machine A2 A3 A4 Paper Roll to Sheet Cross Cutting Machine with Wrapping Machine
Applicable This machine is suitable for cutting big rolls, packaging materials such as office copy paper, paper-plastic, photo paper material, etc.Performance and Characteristics
1.It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.
3.This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically, adopt blower to get rid of waste.
4.This machine can be with 1 roll.2rolls.4rolls loading system.
5.With packaging machine.
Product Process:This machine is a paper cutting machine. Through this machine can let a paper roll to a single sheet paper, like below.
Product Description:

Model	DFJ-A4-1100	DFJ-A4-1400
Max.Width of Unwinding	1100mm	1400mm
Max.Diameter of Unwinding	Ø1400mm	Ø1400mm
Cutting Length	A3/A4	A3/A4
Cutting Speed	<200 times/min	<200 times/min
Cutting Precision	±0.2 mm	±0.2 mm
Machine Weight	8000KG	9000KG
Total Power	20KW	23KW
Dimension(L*W*H)	19600*2000*2000mm	19600*2200*2000mm

Paper Roll UnwinderRound Slitting KnifeConveyor BeltA4 Size Sheets CollecterPacking Machine
This Film blowing Machine adopts the screw and the die of the latest design,which greatly improve the plasticizing effect and enhance the output.With the high-effeciency air blower and special air ring,it truly achieves high quality,high speed and low energy consumption.The products are widely used for shopping bags and the package of food,cloth and garment,tec.DFR-450/500X2 T-shirt bag making machine is special design for 2 lines high speed T-shirt bag production . 2 independent computers control design and driven by 4.4 kw servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable plastic T-shirt bags.Used for blowing high and low pressure polyethylene, the products are widely used in composite film, packaging film, agricultural covering film, textile, clothing bag or film packaging;The main motor adopts frequency conversion speed regulation, which increases the stability of the main motor speed regulation and can save electricity by 30%.The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is,big or small,it can achieve the best effect of cooling.This machine suitable for Paper Roll to make A4 Paper Size Sheet etc. It is used for producing best bags and flat-opening bags with printing. The main motor adopts frequency control of motor speed to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accuralte and the error smaller .it adopts advanced computer to adjust length more freely and accurately.Mini film blowing machine is with good energy saving performance. simple and nice design, easy to operate and save your labor cost. it can work for a long time few problem.Certifications
Packaging & Shipping
After Sales Serviceplease be free to contact us in any timewe are always on line 24 hourscontact girl :Ms AmyFAQ1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
