Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
CE, ISO 9001
Transport Package
Wooden Frame or Wooden Box
Specification
2000*1800*2500mm
Production Capacity
100PCS/Month
Product Description

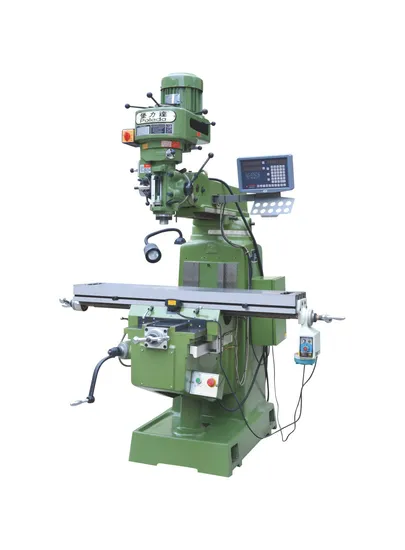

Introducing the 5M Vertical Metal Turret Milling Machine-a versatile and robust universal milling solution from China. At POLEDA, we pride ourselves on being the most professional in the industry. We constantly strive for excellence, believing that while there may be no 'best,' there is always room for 'better.' Discover the 5M Vertical Metal Turret Milling Machine: engineered for precision and versatility, this universal milling machine is built to meet the highest standards.
Experience the unmatched expertise of our China Universal Milling Machine. At POLEDA, professionalism is our hallmark-we are committed to delivering the most advanced and reliable solutions.
At POLEDA, we believe in continuous improvement. There is no ultimate 'best,' but there is always a 'better,' which we relentlessly pursue.
Product Description
Product Parameters
Product Introduction
The turret milling machine, also known as a rocker arm milling machine or universal milling machine, boasts a compact structure and high flexibility. Despite its small size, it features a milling head that can rotate 90 degrees in both directions and 45 degrees front and back. The rocker arm extends and retracts, with a 360-degree horizontal plane rotation, significantly expanding the machine's effective working range.
Construction Details
Crafted from premium-grade cast iron, the universal radial milling machine's body is engineered for precision and longevity following artificial aging treatment. The lifting platform employs rectangular guide rails with multiple contact surfaces and rigid feet. High-frequency treated and finely ground, the slide is plastinated, ensuring exceptional motion accuracy and extended lifespan. The spindle, made from chrome-molybdenum alloy and equipped with precision angular contact bearings, undergoes tempering and fine grinding, resulting in formidable cutting force and high precision.
Applications
The turret milling machine is a versatile and lightweight universal metal cutting machine offering both vertical and horizontal milling capabilities. It's adept at milling flat, inclined, grooved, and splined surfaces of medium and small parts, making it indispensable in industries such as machining, mold manufacturing, and instrument production.
Mechanical Characteristics of the Turret Milling Machine
The casting is made from fine Mihanna cast iron, known for its excellent rigidity, stability, and resistance to deformation.
The main spindle, forged from chrome-molybdenum alloy, is tempered, heat-treated, precision-ground, and integrated with precision bearings to deliver robust cutting force and unparalleled precision.
The milling head gearbox is constructed from cast iron, ensuring superior rigidity, minimal deformation, and heavier mass for accurate cutting and enhanced durability.
The three-axis screw cap is crafted from advanced phosphorus bronze, offering outstanding wear resistance and extended service life.
The XY shaft slide undergoes high-frequency heat treatment for improved wear resistance, extending service life. The XY axis interface, fitted with imported wear-resistant plates, ensures ease of operation and durability.
Equipped with a state-of-the-art lubrication system, the machine ensures uniform oil distribution to maintain smooth slide operation.
This machine is 100 kg heavier than comparable products, underscoring its robust construction.
Powered by a 5hp motor, the NT40 spindle offers high rigidity and precision, making it ideal for machining large parts and performing heavy-duty cutting tasks.
Product Name | Milling machine |
Product model | 5M/5S/5HG |
Product technical parameters | |
dimension | Table size | 1370*305MM |
journey | Left and right stroke(X) | 800MM |
Front and rear stroke(Y) | 380MM |
Up and down stroke(Z) | 380MM |
Arm reach | 600MM |
Distance from spindle end face to table surface | 100-480MM |
Table bearing | 350KG |
Principal axis coefficient | Spindle taper | NT40 |
Spindle speed | 80-5440RPM(16-speed) |
Spindle travel | 127MM |
Spindle horse power | 5HP |
Milling head | Milling head tilt Angle | 45° front and back |
Lead screw | X/Y/Z-axis screw diameter | Tr32/Tr32/Tr35MM |
Three-axis lead screw pitch | 5MM |
Machine size (L * W * H)(MM) | 1750*1700*2200MM |
Approximate machine weight | 1580kgs |
disposition | Accessories name | quantity |
Standard parts for machine tools | 1,Hand oil pump | 1 |
2,Work light | 1 |
3,Organ board + protective glue | 1 |
4,Lever | 1 |
5,Tools and toolboxes | 1 |
6,Operating instruction | 1 |
Detailed Photos
Our Advantages
Certifications
FAQ
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements regarding color, logo, and other specifications. For some standard items we have in stock, the MOQ is 1 set.
2.How do you control the quality of your products?
A. We have always placed the utmost emphasis on maintaining high-quality standards. Our principle is to consistently providecustomers with superior quality, competitive pricing, and excellent service.
3.What are the main products of your company?
A: We specialize in a wide range of machines, including CNC Machines, Lathe Machines, Milling Machines,Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: We accept Ex-works, FOB, CFR, and CIF.
5.What are your Payment Terms?
A: T/T, with a 30% initial payment upon order, and 70% balance payment before shipment.
6.What CNC systems do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN - The choice is yours.
7.How can I choose the most suitable machines?
A: Send us your product drawings and applications, and we will recommend the most suitable machines for you.
8.What kind of packaging do you offer?
A. We typically use plywood cases to ensure all goods are in excellent condition. Customized packaging is also available upon request.
9.Can your plant handle OEM?
A:Yes, we can handle both OEM and ODM for any customer. 10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we provide lifetime service for the machines.
