Aohua Factory Cat5 CAT6 Ethernet Cable Waterproof Panel Type RJ45 Connector

Product Description

Product DescriptionAohua Factory Cat5 CAT6 Ethernet Cable Waterproof Panel Type RJ45 Connector

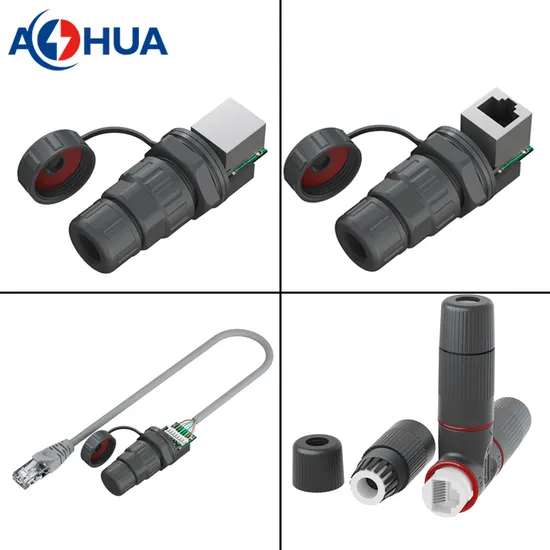

180degree RJ45 connector
This is inline 180degree panel mount waterproof RJ45 connector.
Plastic: PA66
Suitable cable: cat5 and cat6 non shielded
Contacts: 8pin
Wire: 24AWG
Part Number:
AH-RJ45-M21F180
Housing: AH-RJ45-M21MC
Dust cap: AH-RJ45-CAP
90degree RJ45 waterproof connector
This is inline 90degree panel mount waterproof RJ45 connector.
Plastic: PA66
Suitable cable: cat5 and cat6 non shielded
Contacts: 8pin
Wire: 24AWG
Part Number:
AH-RJ45-M21F90
Housing: AH-RJ45-M21MC
Dust cap: AH-RJ45-CAP

RJ45 waterproof connector with cable
This is inline panel mount waterproof RJ45 connector with cable.
Plastic: PA66
Suitable cable: cat5 and cat6 non shielded
Contacts: 8pin
Wire: 24AWG
Part Number:
AH-RJ45-M21FC
Housing: AH-RJ45-M21MC
Dust cap: AH-RJ45-CAP
General cable length for choosing from: 150mm, 250mm, and 500mm, can be customized as required. Straight RJ45 waterproof connector
This is inline straight panel mount waterproof RJ45 connector.
Plastic: PA66
Suitable cable: cat5 and cat6 non shielded
Contacts: 8pin
Wire: 24AWG
Part Number:
AH-RJ45-08Z01132
Housing: AH-RJ45-M21MC
Dust cap: AH-RJ45-CAPT shape RJ45 waterproof connector
This is T type waterproof RJ45 connector.
Plastic: PA66
Suitable cable: cat5 and cat6 non shielded
Contacts: 8pin
Wire: 24AWG
Part Number:
AH-RJ45-08T01331
Description & Specs

Contact Numbers	8
Voltage Rating	24V
Current Rating	1 A
Wire gague	24-28 awg
Cable OD	6.5 mm
Mechanical Life	N/A
Operating Rating	-40ºC-+105ºC
Waterproof level	IP67

How To Order?
How to order the right connector for your cable?
The right connector ensure your power running safe and save your money.
1. If you only need the connector: please specify the working ampere, wire gauge and cable OD of you want to connect, then we can help you double check the connector whether is OK.
2. If you want to customize a cable solution, please send simple drawing and specify the detail requirements. Related Products
1. AOHUA basic series waterproof connectors existing.
2. AOHUA customized series waterproof cable harness connector solution
Customization is AOHUA core business. We not only want to solve your wire joint connection, but also want to solve all your cable layout solution.
We can customize:
~~~customize LOGO and package;
~~~customize new mold/connector/printing;
~~~customize special cable wires;
~~~customize color /terminals;
~~~processing of incoming materials;
How to customize:
It would be much appreciated if you can provide a sketch or drawing, then our team will get back to you with CAD or 3D files. What we want to know:
1. connector solution or types;
2. working ampere;
3. wire gauge, cable length, cable OD;
4. material of connector and cables;
5. connection or special customization request. Company Profile
