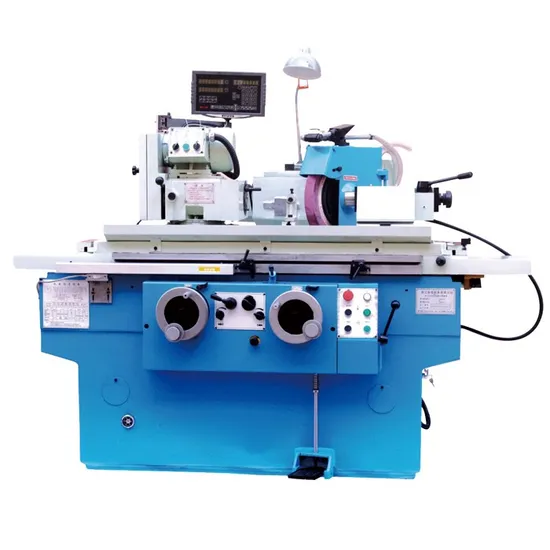

Shanghai Farfly Fds123-10L-15kw- Grinding Machine Ink Bead Mill
| US$2,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FSG-50 NC67
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Control
Manual/Semi-Auto/Auto
Power
Electrical
Table Type
Normal-Table/Magic-Table
Moving Type
Bed-Moving
Transport Package
Pallet
Specification
150mm*450mm-500mm*1600mm
Trademark
BOLI
Origin
China
HS Code
8460190000
Production Capacity
30000
Product Description
FSG-50 NC Series Surface Grinding Machine· External hydraulic unit ensures low temperature rising and supply stability power
· Auto-Center lubrication unit
· Very easy to set auto ground program include rough, finish, and sparkout stroke
· Precision grinding spindle runs in maintenane-free, suport by preload high precision angular ball bearing
· Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy
· The machine bed, table and column are high grade casting piece, which supply strong base of grinding. The slideway is coat with tf wearable material and manual precision scrapped.
Technical Parameters
| Model No. | Unit | FSG-50100NC | FSG-50160NC |
| table size (W×L) | mm | 500×1000(19.69"×39.37") | 500×1600(19.69"×62.99") |
| max. grinding size (W×L) | mm | 500×1000(19.69"×39.37") | 500×1600(19.69"×62.99") |
| max. distance from table to spindle center | mm | 600(23.62") | |
| magnetic chuck size (optional equipment) | mm | 500×1000×1(19.69"×39.37"×1) | 500×1600×2(19.69"×62.99"×2) |
| speed of table longitudinal move | m/min | 5~25(0.20"~0.98") | |
| WHEEL HEAD CROSS MOVE | |||
| auto intermittent feed | mm/t | 1~20(0.039"~0.79") | |
| rapid speed | mm/min | 50~1500(1.97"~59.06") | |
| feed of MPG | mm/div | 0.005(0.000197") | |
| WHEEL HEAD VERTICAL MOVE | |||
| auto feed | mm/t | 0.005, 0.01, 0.02, 0.03, 0.04(0.000197", 0.00039", 0.00079", 0.0012", 0.0016") | |
| rapid speed | mm/min | 50~500(1.97"~19.69") | |
| feed of MPG | mm/div | 0.005(0.000197") | |
| gindwheel size | mm | 355×(20~50)×127(13.98"×(0.79"~1.97")×5.00") | |
| motor of spindle | kW | 7.5 | |
| package size | cm | 399×225×228 | 564×225×228 |
| G.W. | kg | 5500 | 6000 |
