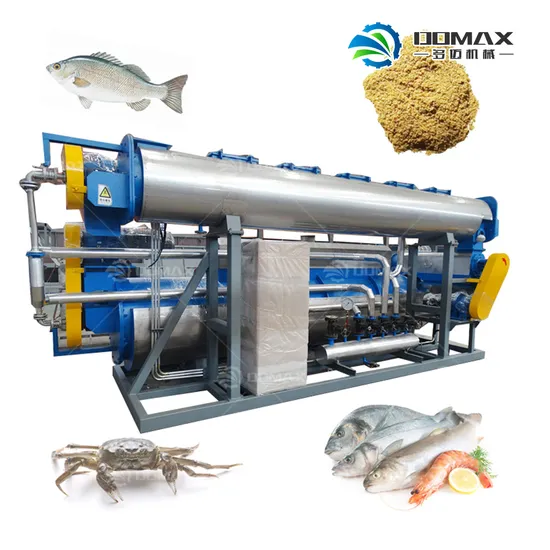

Energy-Saving Fish Flour Process Machine/Tuna Fishmeal Machine with The Fish Oil Making

Product Description

Energy-saving Fish Flour Process Machine/Tuna Fishmeal Machine With The Fish Oil Making

Product Description
Production of Fishmeal Machine Fishmeal processing machinery mainly processes fish, fish processing waste or some crustaceans and cephalopods with low economic value into fishmeal. In addition to being used to produce feed fishmeal, if the raw materials are fresh and the equipment meets sanitary conditions, it can also be used to produce edible fishmeal.
Processing machinery mainly consists of steam dryers, presses, grinders, etc. After the raw materials are boiled and dried in the steam dryer to remove moisture, the fish oil is removed by a press or leaching method, and then the grinder is used to grind into powder.
Product Parameters

DEVICE NAME	Dimension(mm)	Power(kw)	Material
Crushing machine	1500*600*1500	5.5	SUS304
Steaming and pressing machine	7500*500×1200	3	SUS304
Steam dryer	8800×1800×2100	30	SUS304
Rotary cooling screen	2800X1200X1800	2.2	SUS304
grinder	1200×1000×1200	15	SUS304

Application
Application of Fishmeal Machine This unit is designed for small fish meal processing plants, with low investment and quick results. It integrates steaming, pressing and drying. It uses heat transfer oil as a carrier and electromagnetic heating to replace steam boilers. The electric heating power is 60 kw, and the working temperature of the heat transfer oil is 180ºC.
It is suitable for aquatic product processing enterprises, aquatic waste material processing places and small fish meal plants with unstable raw materials.
The process of processing small miscellaneous fish is to mature the materials by steaming, and the matured materials are then degreased by pressing to achieve the degreasing effect. The cake enters the steam dryer for drying. Under the action of the stirring teeth, the materials are fully dried to obtain the finished product.
