US$500.00-600.00
|
1 Piece
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
GS, CE, ISO 9001
Machine Spindle Bore
21mm
Transport Package
Standard Plywood Pakcsge
Production Capacity
50 Sets/ Month
Packaging & Delivery
Package Size
74.00cm * 39.00cm * 37.00cm
Package Gross Weight
70.000kg

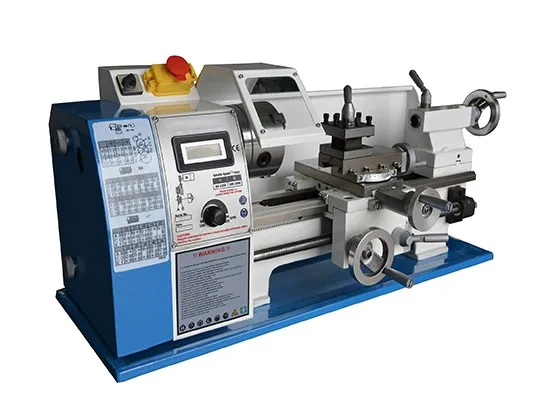

Product Description
Features:
Widely useful, operation very easy, processing scope widespread
Guaranteed concentricity precision of the main spindle less than 0.009 mm
Concentricity precision - lathe chuck smaller than 0.05 mm
Easy operating gear box has various speeds and thread cutting function
High precision and hardened spindle
Precision-manufactured, taper roller bearings in P5 quality
Powerful, maintenance-free motor
Induction-hardened and ground prismatic bed made from cast iron
Safety magnetic and lock key European-standard switch
Main Specification:
Specifications | D180V |
Max. swing over bed | 180mm |
Max. swing over cross slide | 110mm |
Max. compound slide travel | 55mm |
Max. carriage slide travel | 75mm |
Max. carriage travel | 195mm |
Distance between centers | 300mm |
Width of bed | 100mm |
Spindle bore | 21mm |
Spindle taper | MT3 |
Spindle speed | Variable: 50-2500rpm |
Range of metric threads | 10 kinds: 0.5-3mm |
Range of imperial threads | 8 kinds: 8-44 T.P.I |
Max. travel of tailstock quill | 60MM |
Tailstock taper | MT2 |
Motor power | DC motor:450W or 600W,Optional brushless motor:550W |
N.W./G.W. | 60/70kgs |
Machine size(LXWXH) | 740x390x370mm |
Packing size | 800x480x450mm |
Standard accessories:
3-Jaw chuck
Chuck guard
Change gears set
Splash guard
Oil tray
Tool box and tools
