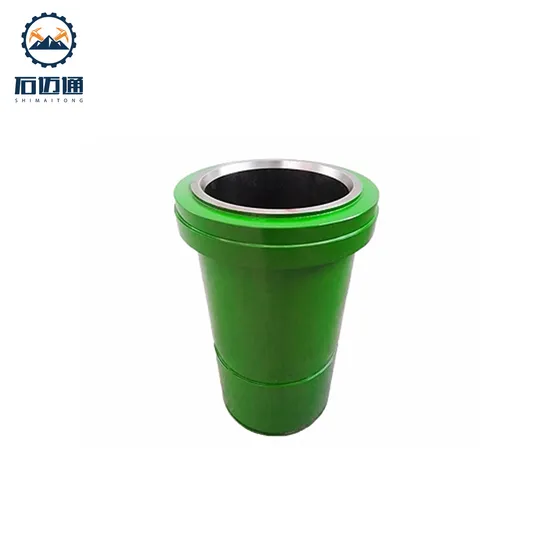

Oilfield Drilling Equipment High Chrome Mud Pump Spare Parts Liner Bi-Metal Liner
Basic Info.
Model NO.
all
Application
Oil Drilling
Certification
ISO
Standard
API7K
Transport Package
Standard Export Packing
Specification
standard
Trademark
JM
Origin
Hebei China
HS Code
8413910000
Production Capacity
5000/Month
Packaging & Delivery
Package Size
100.00cm * 80.00cm * 60.00cm
Package Gross Weight
360.000kg
Product Description
Product DescriptionThe bi-metal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.AS one of main quick-wear parts, bi-metal liner consists of internal liner,which of made of wear-resistant high chromium alloy,and external liner,which is made of high quality carbon steel.its inner hole hardness is above HRC62 after heat treating,and it can perform a good ability of corrosion resistance and abrasion resistance in poor working condition,its normal service life is more than 800 hours. Product Parameters
| Item | F500 | F800 | F1000 | F1300 | F1600 |
| Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
| Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
| Stroke Length(in /mm) | 7.5" /190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 |
| Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
| Inlet Dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 |
| Outlet Dia. (in) | 4" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi |
| Valve | API5# | API6# | API6# | API7# | API7# |
| Max. Liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 |
| Overall Dimension L*W*H(mm) | 3658*2709 *2231 | 3963*3025 *2410 | 4267*3167 *2580 | 4617*3260 *2600 | 4615*3276 *2688 |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
