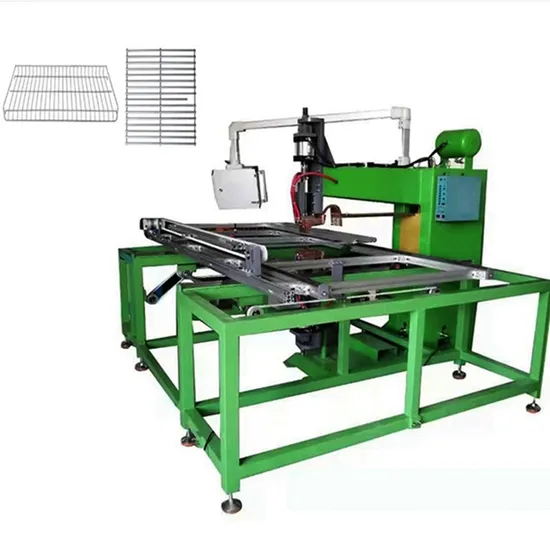

Automatic Xy CNC Table Wire Mesh Grid Spot Multi Point Welding Machine

Product Description

Product Description
1.Xy Axis CNC Table Wire Spot Welder Pet Cage Mesh Multi Point Welding Machineincludes two parts :
a welding machine and a worktable .The Welding machine can be equipped with AC pulse power supply or an energy -saving and environmentally friendly medium frequency inverter DC power supply,and design to single-head and multi-head long arm spot welding or multi-point welding structure,equipped with a welding mold that automatic moves along the XY axis,only need to input the coordinate date of the welding position,then can start the machine for automatic production .Manual placement and removal of the workpiece after finished a welding cycle.
2.The structure of the equipment is flexible and the combination is convenient.It can be matched with different welding equipment;
3.Adopted the programmable control system,automatic welding and manual welding can be freely switched,teach in jog to find points according to the actual products ,high precision and accuracy;
4.Confifue the control box to switch different welding specifications.It can set different welding current,welding time for different welding workpieces,and the specifications can be one-key switching if need.
5.Widely used in various fence mesh welding,shelf welding,supermarket shopping cart welding,shopping rack welding,pet cage welding,various sheet metal welding,etc.
6.Manufactured in accordance with international ISO Standard and European CE Certificate.
Product Parameters

Model	Rated Primary Voltage	Rated Frequency	Max Secondary Current	Rated Duty Cycle	Arm Length	Maximum Force	Machine Dimensions(MM)	Rated Capacity	Work Table Dimensions(MM)	Max Welding Range(MM)
DN-75K-600MM	380V	50/60Hz	25000A	50%	600MM	6280N	1300*850*1750	75KVA	1400*2000	600*800
DN-100K-600MM			30500A					100KVA
DN-100K-800MM					800MM		1500*850*1750		1600|*2450	800*1000
DN-100K-1000MM							1800*850*1750		2000*3000	1000*1500
DN-150K-1000MM			38500A		1000MM	9800N	1800*950*2000		2000*4000	1000*2000

Packaging & Shipping
Company Profile Suzhou Hanxin Machinery Equipment CO.,LTD is a professional automatic welding equipment manufacturer,which specializes in designing,producing,sale and service together.
Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three-phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,Wire Ring Making and Welding Machine,2D Wire Forming Machine,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipment.

Suzhou Hanxin Machinery Equipment CO.,LTD Add: No. 2-9, shitian road, xiangcheng district, suzhou city, jiangsu province, China
FAQ Q1: Are you a trading company or a manufacturer?
Answer: We have our own factories, which are located in Suzhou.
Q2: What are your payment terms?
Answer: T / T payment, the deposit is 30% of the payment, and 70% is paid
before delivery. Before paying the final payment,
we will provide you with photos of the product and warranty.
Q3: What is the price of your equipment?
Answer: The FOB price is only for reference, the actual price of the equipment should
also be determined according to your welding requirements, and there is a large
amount of discount.
Q4: How long is your delivery time?
Answer: Usually 30 days. If you need emergency services,
please notify us before submitting your order.
Q5: How about your after-sales service and warranty?
Answer: During the warranty period (one year), we will provide spare
parts to you free of charge. And provide technical consultants at any time.
