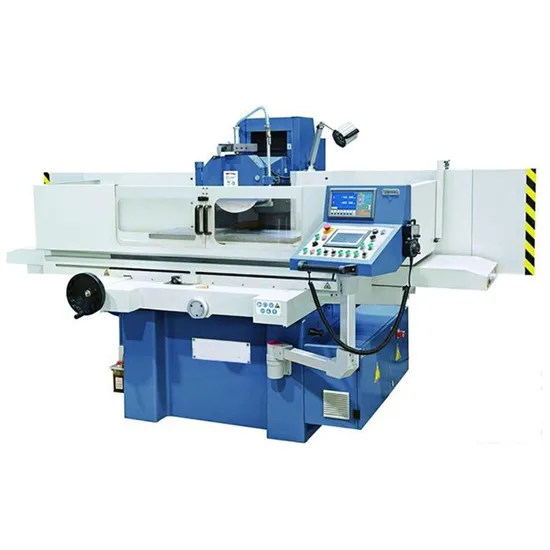

Fsg-Wx2 Surface Grinding Machine Tool

Fsg-Wx2 Surface Grinding Machine Tool

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FSG-WX2
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year

Product Description

Product Description
Standard equipment
Coolant tank Standard electro magnetic chuck Balancing arbor Wheel flange Wheel extractor Leveling wedge and bolt Tool box and tools Standard grinding wheel Working lamp Wheel dresser stand
(not include diamond pen) Build in electro magnetic chuck controller PLC auto grinding controller
(only for A models) Optional equipment Balancing stand dust collector Coolant tank with magnetic separator Coolant tank with paper filter Coolant with magnetic separator and paper filter Parallel wheel dresser Luxurious magnetic chuck controler Universal dresser Radius & angle dresser Sine dresser Digital readout
Product Parameters
Model
Description
Unit		 FSG-2050M FSG-2550M FSG-3063M FSG-30100M FSG-4080M FSG-40100M
FSG-2050R FSG-2550R FSG-3063R FSG-30100R FSG-4080R FSG-40100R
FSG-2050A FSGA-2550A FSG-3063A FSG-30100A FSG-4080A FSG-40100A
(×)Table size(w×L) mm 200×508 254×508 305×635 305×1020 406×813 406×1020
Max. longitudinal travel mm 560 560 765 1130 910 1130
Max. cross travel mm 240 275 340 340 450 450

Max. distance from spindle center to table surface		 mm 450 450 580 580 580 580
Magnetic chuck size mm 200×460 250×500 300×600 300×1000 400×800 400×1000
Speed of table longitudinal movement m/min 5~25

Table transverse movement		 intermittent feed mm/ stroke 0.1~8 0.1-8
Rapid speed mm/min 790 990
Feed of hand wheel mm/div. 0.02 0.02

Wheel head vertical
movement		 Auto down feed mm ―――(M/R mode) 0.005/0.01/0.02/0.03/0.04/0.05(Only for A model)
Rapid speed mm/min ―――(M mode) 650/480(Only for R/A model)
Feed of hand wheel mm/div. 0.005

Grinding wheel		 Speed rpm 2850(50Hz),3450(60Hz) 1450(50Hz),1750(60Hz)
Size (OD×W×ID) mm 200×20×31.75 350×40×127
Spindle Motor kW 2.2 4
Hydraulic pump motor kW 0.75 2.2
Cooling pump motor kW 0.04 0.125
Elevating motor kW ―――(M mode) 0.25(R mode) 0.5(A model, servo motor)
Cross feed motor kW 0.04
()
Max. loading capacity of table(include magnetic chuck)		 kg 180 180 270 400 500 600
Total rated power kW 3.7 9
Height of machine mm 1675 1900
Floor space (L×W) cm 230×160 230×160 290×220 440×220 360×240 440×240
Gross weight kg 1650 1800 2800 3200 3400 3600
Package dimensions (L×W×H) cm 200×210×215 200×210×215 235×222×221 295×222×221 285×227×221 295×227×221
