US$6,500.00-35,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Name
QC11K CNC Guillotine Shearing Machine
Color
Optional Hydraulic Shearing Machine
Hydraulic System
Bosch Rexroth Germany
Sealing Rings
Volqua Japan
Electric Parts
Siemens & Schneider
Shearing Plate Material Available
20-600mm
Stroke Number
Mild Steel, Stainless Steel, Aluminum Steel
Production Capacity
30set/Month
Product Description

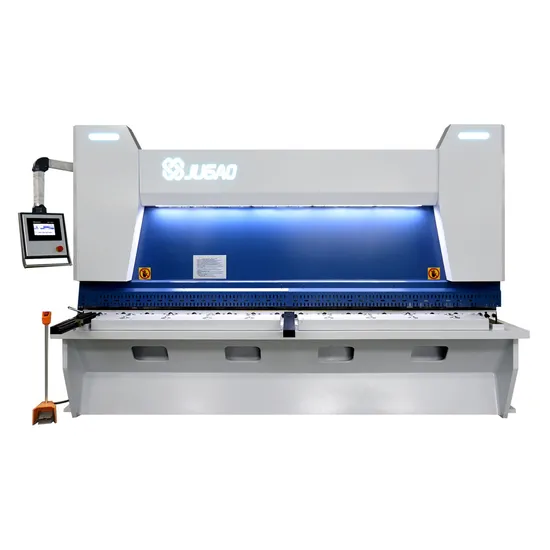

QC11K Metal Plate DAC360T 10*2500 16*3200 CNC Hydraulic Guillotine Shearing Machine JUGAO has chosen the very powerful new generation Delem DAC-360T control provides a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length and gap can be controlled, based on state of the art electronics.
With its easy to use touch screen navigation on the bright LCD screen, operation is most user-friendly. The numerical programming with clear icons guides the operator through all programming functionalities.
DAC-360T featuring:
1. 7" widescreen TFT Colour LCD display
2. Back / front gauge control
3. Panel based housing
4. Retract function
5. Cutting angle and gap control
6. Stroke length limitation
7. Manual movement of all axes
8. Force control
9. Return to Sender function
10. Program memory for 100 programs
11. Sheet support system
12. Sheet thickness measurement system
Technical parameter
model | Shear plate thickness | Shearable plate width | Number of trips | Back gauge range | Shear angle | main motor power |
mm | mm | min -1 | mm | ° | kw |
6×2500 | 6 | 2500 | 20-25 | 600 | 0.5-1.5 | 7.5 |
6×3200 | 6 | 3200 | 16-25 | 600 | 0.5-1.5 | 7.5 |
6×4000 | 6 | 4000 | 14-25 | 600 | 0.5-1.5 | 7.5 |
6×5000 | 6 | 5000 | 10-15 | 800 | 0.5-1.5 | 7.5 |
6×6000 | 6 | 6000 | 10-15 | 800 | 0.5-1.5 | 11 |
8×2500 | 8 | 2500 | 18-25 | 600 | 0.5-1.5 | 11 |
8×3200 | 8 | 3200 | 16-25 | 600 | 0.5-1.5 | 11 |
8×4000 | 8 | 4000 | 12-25 | 600 | 0.5-1.5 | 11 |
12×2500 | 12 | 2500 | 12-20 | 600 | 0.5-2 | 15 |
12×3200 | 12 | 3200 | 12-20 | 600 | 0.5-2 | 15 |
12×4000 | 12 | 4000 | 12-20 | 600 | 0.5-2 | 15 |
16×2500 | 16 | 2500 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×3200 | 16 | 3200 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×4000 | 16 | 4000 | 8-15 | 800 | 0.5-2.5 | 18.5 |
20×2500 | 20 | 2500 | 8-12 | 800 | 0.5-2.5 | 30 |
20×4000 | 20 | 4000 | 8-12 | 800 | 0.5-2.5 | 30 |
25×2500 | 25 | 2500 | 6-10 | 800 | 0.5-3.5 | 37 |
25×3200 | 25 | 3200 | 6-10 | 800 | 0.5-3.5 | 37 |
25×4000 | 25 | 4000 | 6-10 | 1000 | 0.5-3.5 | 37 |
32×2500 | 32 | 2500 | 6-8 | 1000 | 0.5-3.5 | 45 |
32×3200 | 32 | 3200 | 6-8 | 1000 | 0.5-3.5 | 45 |
